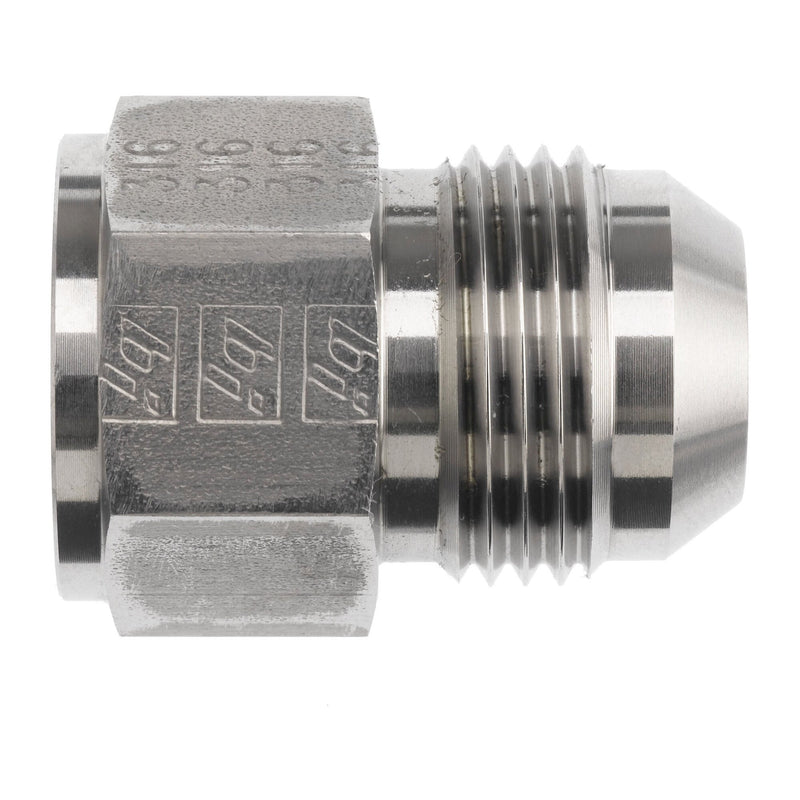

2406-20-08 by Brennan Inc. | -20 Female JIC x -08 Male JIC | Straight Reducer (Non-Swivel) | Steel

2406-20-08 by Brennan Inc. | -20 Female JIC x -08 Male JIC | Straight Reducer (Non-Swivel) | Steel

Save $2.77 Save $2.77
$24.93
$24.93 - $24.93
$24.93
$22.16
$22.16 - $22.16
$22.16

Brennan Inc.
Tube Fittings & Adapters: 2406 - Female JIC x Male JIC | Straight Reducer (Non-Swivel)
Specifications for Variant SKU: 2406-20-08 Brennan
Series: 2406 Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female JIC, 1/2in Male JIC
Material(s): Steel
Part Number Material B1 Tube OD B2 Tube OD B1 SAE 37° B2 SAE 37° LO Length C Hex B2 Drill
2406-03-04 Steel 3/16" 1/4" 3/8-24" 7/16-20" 0.980" 0.500" 0.125"
2406-04-02 Steel 1/4" 1/8" 7/16-20" 5/16-24" 1.04" 0.563" 0.062"
2406-04-03 Steel 1/4" 3/16" 7/16-20" 3/8-24" 1.070" 0.562" 0.125"
2406-04-04 Steel 1/4" 1/4" 7/16-20" 7/16-20" 1.15" 0.562" 0.172"
2406-04-05 Steel 1/4" 5/16" 7/16-20" 1/2-20" 1.150" 0.625" 0.172"
2406-04-06 Steel 1/4" 3/8" 7/16-20" 9/16-18" 1.16" 0.625" 0.172"
2406-04-08 Steel 1/4" 1/2" 7/16-20" 3/4-16" 1.25" 0.812" 0.172"
2406-05-04 Steel 5/16" 1/4" 1/2-20" 7/16-20" 1.190" 0.625" 0.172"
2406-05-06 Steel 5/16" 3/8" 1/2-20" 9/16-18" 1.190" 0.625" 0.234"
2406-05-08 Steel 5/16" 1/2" 1/2-20" 3/4-16" 1.27" 0.812" 0.234"
2406-06-02 Steel 3/8" 1/8" 9/16-18" 5/16-24" 1.07" 0.688" 0.062"
2406-06-04 Steel 3/8" 1/4" 9/16-18" 7/16-20" 1.19" 0.688" 0.172"
2406-06-05 Steel 3/8" 5/16" 9/16-18" 1/2-20" 1.190" 0.688" 0.234"
2406-06-06 Steel 3/8" 3/8" 9/16-18" 9/16-18" 1.180" 0.688" 0.297"
2406-06-08 Steel 3/8" 1/2" 9/16-18" 3/4-16" 1.28" 0.812" 0.297"
2406-06-10 Steel 3/8" 5/8" 9/16-18" 7/8-14" 1.38" 0.937" 0.297"
2406-08-04 Steel 1/2" 1/4" 3/4-16" 7/16-20" 1.45" 0.875" 0.172"
2406-08-05 Steel 1/2" 5/16" 3/4-16" 1/2-20" 1.30" 0.875" 0.234"
2406-08-06 Steel 1/2" 3/8" 3/4-16" 9/16-18" 1.31" 0.875" 0.297"
2406-08-08 Steel 1/2" 1/2" 3/4-16" 3/4-16" 1.41" 0.875" 0.391"
2406-08-10 Steel 1/2" 5/8" 3/4-16" 7/8-14" 1.290" 0.937" 0.391"
2406-08-12 Steel 1/2" 3/4" 3/4-16" 1-1/16-12" 1.61" 1.125" 0.391"
2406-08-16 Steel - - - - - - -
2406-10-04 Steel 5/8" 1/4" 7/8-14" 7/16-20" 1.41" 1.000" 0.172"
2406-10-05 Steel 5/8" 5/16" 7/8-14" 1/2-20" 1.390" 1.000" 0.234"
2406-10-06 Steel 5/8" 3/8" 7/8-14" 9/16-18" 1.41" 1.000" 0.297"
2406-10-08 Steel 5/8" 1/2" 7/8-14" 3/4-16" 1.41" 1.000" 0.391"
2406-10-12 Steel 5/8" 3/4" 7/8-14" 1-1/16-12" 1.71" 1.125" 0.484"
2406-10-16 Steel 5/8" 1" 7/8-14" 1-5/16-12" 1.76" 1.375" 0.484"
2406-12-04 Steel 3/4" 1/4" 1-1/16-12" 7/16-20" 1.50" 1.250" 0.172"
2406-12-06 Steel 3/4" 3/8" 1-1/16-12" 9/16-18" 1.500" 1.250" 0.297"
2406-12-08 Steel 3/4" 1/2" 1-1/16-12" 3/4-16" 1.68" 1.250" 0.391"
2406-12-10 Steel 3/4" 5/8" 1-1/16-12" 7/8-14" 1.68" 1.250" 0.484"
2406-12-12 Steel 3/4" 3/4" 1-1/16-12" 1-1/16-12" 1.77" 1.250" 0.609"
2406-12-16 Steel 3/4" 1" 1-1/16-12" 1-5/16-12" 1.817" 1.375" 0.609"
2406-12-20 Steel 3/4" 1-1/4" 1-1/16-12" 1-5/8-12" 1.71" 1.687" 0.609"
2406-14-06 Steel 7/8" 3/8" 1-3/169-12" 9/16-18" 1.59" 1.375" 0.297"
2406-14-08 Steel 7/8" 1/2" 1-3/16-12" 3/4-16" 1.690" 1.375" 0.391"
2406-14-10 Steel 7/8" 5/8" 1-3/16-12" 7/8-14" 1.73" 1.375" 0.484"
2406-14-12 Steel 7/8" 3/4" 1-3/16-12" 1-1/16-12" 1.840" 1.375" 0.609"
2406-14-16 Steel 7/8" 1" 1-3/16-12" 1-5/16-12" 2.000" 1.375" 0.719"
2406-16-04 Steel 1" 1/4" 1-5/16-12" 7/16-20" 1.840" 1.500" 0.172"
2406-16-06 Steel 1" 3/8" 1-5/16-12" 9/16-18" 1.84" 1.500" 0.297"
2406-16-08 Steel 1" 1/2" 1-5/16-12" 3/4-16" 1.72" 1.500" 0.391"
2406-16-10 Steel 1" 5/8" 1-5/16-12" 7/8-14" 1.79" 1.500" 0.484"
2406-16-12 Steel 1" 3/4" 1-5/16-12" 1-1/16-12" 1.90" 1.500" 0.609"
2406-16-14 Steel 1" 7/8" 1-5/16-12" 1-3/16-12" 1.91" 1.500" 0.719"
2406-16-20 Steel 1" 1-1/4" 1-5/16-12" 1-5/8-12" 1.71" 1.688" 0.844"
2406-16-24 Steel 1" 1-1/2" 1-5/16-12" 1-7/8-12" 2.10" 2.000" 0.844"
2406-20-06 Steel 1-1/4" 3/8" 1-5/8-12" 9/16-18" 1.670" 2.000" 0.297"
2406-20-08 Steel 1-1/4" 1/2" 1-5/8-12" 3/4-16" 1.840" 2.000" 0.391"
2406-20-10 Steel 1-1/4" 5/8" 1-5/8-12" 7/8-14" 1.920" 2.000" 0.484"
2406-20-12 Steel 1-1/4" 3/4" 1-5/8-12" 1-1/16-12" 2.000" 2.000" 0.609"
2406-20-14 Steel 1-1/4" 7/8" 1-5/8-12" 1-3/16-12" 1.95" 2.000" 0.719"
2406-20-16 Steel 1-1/4" 1" 1-5/8-12" 1-5/16-12" 2.000" 2.000" 0.844"
2406-20-24 Steel 1-1/4" 1-1/2" 1-5/8-12" 1-7/8-12" 2.140" 2.000" 1.078"
2406-24-08 Steel 1-1/2" 1/2" 1-7/8-12" 3/4-16" 1.85" 2.250" 0.391"
2406-24-10 Steel 1-1/2" 5/8" 1-7/8-12" 7/8-14" 1.95" 2.250" 0.484"
2406-24-12 Steel 1-1/2" 3/4" 1-7/8-12" 1-1/16-12" 2.10" 2.250" 0.609"
2406-24-16 Steel 1-1/2" 1" 1-7/8-12" 1-5/16-12" 2.15" 2.250" 0.844"
2406-24-20 Steel 1-1/2" 1-1/4" 1-7/8-12" 1-5/8-12" 2.19" 2.250" 1.078"
2406-24-32 Steel 1-1/2" 2" 1-7/8-12" 2-1/2-12" 2.52" 2.625" 1.312"
2406-32-12 Steel 2" 3/4" 2-1/2-12" 1-1/16-12" 2.30" 2.875" 0.609"
2406-32-16 Steel 2" 1" 2-1/2-12" 1-5/16-12" 2.350" 2.875" 0.844"
2406-32-20 Steel 2" 1-1/4" 2-1/2-12" 1-5/8-12" 2.580" 2.875" 1.078"
2406-32-24 Steel 2" 1-1/2" 2-1/2-12" 1-7/8-12" 2.744" 2.875" 1.312"
2406-06-04-B Brass 3/8" 1/4" 9/16-18" 7/16-20" 1.17" 0.688" 0.172"
2406-08-04-B Brass 1/2" 1/4" 3/4-16" 7/16-20" 1.45" 0.875" -
2406-04-02-SS Stainless Steel 1/4" 1/8" 7/16-20" 5/16-24" 1.050" 0.562" 0.062"
2406-04-03-SS Stainless Steel 1/4" 3/16" 7/16-20" 3/8-24" 1.070" 0.563" 0.125"
2406-04-06-SS Stainless Steel 1/4" 3/8" 7/16-20" 9/16-18" 1.16" 0.625" 0.172"
2406-04-08-SS Stainless Steel 1/4" 1/2" 7/16-20" 3/4-16" 1.25" 0.812" 0.172"
2406-05-04-SS Stainless Steel 5/16" 1/4" 1/2-20" 7/16-20" 1.190" 0.625" 0.172"
2406-05-06-SS Stainless Steel 5/16" 3/8" 1/2-20" 9/16-18" 1.190" 0.625" 0.234"
2406-06-04-SS Stainless Steel 3/8" 1/4" 9/16-18" 7/16-20" 1.17" 0.688" 0.172"
2406-06-06-SS Stainless Steel - - - - - - -
2406-06-08-SS Stainless Steel 3/8" 1/2" 9/16-18" 3/4-16" 1.28" 0.812" 0.297"
2406-06-12-SS Stainless Steel - - - - - - -
2406-08-04-SS Stainless Steel 1/2" 1/4" 3/4-16" 7/16-20" 1.45" 0.875" 0.172"
2406-08-06-SS Stainless Steel 1/2" 3/8" 3/4-16" 9/16-18" 1.31" 0.875" 0.297"
2406-08-10-SS Stainless Steel 1/2" 5/8" 3/4-16" 7/8-14" 1.290" 0.937" 0.391"
2406-08-12-SS Stainless Steel 1/2" 3/4" 3/4-16" 1-1/16-12" 1.61" 1.125" 0.391"
2406-10-04-SS Stainless Steel 5/8" 1/4" 7/8-14" 7/16-20" 1.41" 1.000" 0.172"
2406-10-06-SS Stainless Steel 5/8" 3/8" 7/8-14" 9/16-18" 1.41" 1.000" 0.297"
2406-10-08-SS Stainless Steel 5/8" 1/2" 7/8-14" 3/4-16" 1.41" 1.000" 0.391"
2406-10-12-SS Stainless Steel 5/8" 3/4" 7/8-14" 1-1/16-12" 1.71" 1.125" 0.484"
2406-12-04-SS Stainless Steel 3/4" 1/4" 1-1/16-12" 7/16-20" 1.50" 1.250" 0.172"
2406-12-06-SS Stainless Steel 3/4" 3/8" 1-1/16-12" 9/16-18" 1.500" 1.250" 0.297"
2406-12-08-SS Stainless Steel 3/4" 1/2" 1-1/16-12" 3/4-16" 1.68" 1.250" 0.391"
2406-12-10-SS Stainless Steel 3/4" 5/8" 1-1/16-12" 7/8-14" 1.68" 1.250" 0.484"
2406-12-12-SS Stainless Steel 3/4" 3/4" 1-1/16-12" 1-1/16-12" 1.77" 1.250" 0.609"
2406-12-16-SS Stainless Steel 3/4" 1" 1-1/16-12" 1-5/16-12" 1.817" 1.375" 0.609"
2406-16-04-SS Stainless Steel 1" 1/4" 1-5/16-12" 7/16-20" 1.840" 1.500" 0.172"
2406-16-06-SS Stainless Steel 1" 3/8" 1-5/16-12" 9/16-18" 1.84" 1.500" 0.297"
2406-16-08-SS Stainless Steel 1" 1/2" 1-5/16-12" 3/4-16" 1.72" 1.500" 0.391"
2406-16-12-SS Stainless Steel 1" 3/4" 1-5/16-12" 1-1/16-12" 1.90" 1.500" 0.609"
2406-16-20-SS Stainless Steel 1" 1-1/4" 1-5/16-12" 1-5/8-12" 1.97" 1.688" 0.844"
2406-20-08-SS Stainless Steel 1-1/4" 1/2" 1-5/8-12" 3/4-16" 1.840" 2.000" 0.391"
2406-20-10-SS Stainless Steel 1-1/4" 5/8" 1-5/8-12" 7/8-14" 1.920" 2.000" 0.484"
2406-20-12-SS Stainless Steel 1-1/4" 3/4" 1-5/8-12" 1-1/16-12" 2.000" 2.000" 0.609"
2406-20-16-SS Stainless Steel 1-1/4" 1" 1-5/8-12" 1-5/16-12" 2.000" 2.000" 0.844"
2406-20-24-SS Stainless Steel 1-1/4" 1-1/2" 1-5/8-12" 1-7/8-12" 2.140" 2.000" 1.078"
2406-24-12-SS Stainless Steel 1-1/2" 3/4" 1-7/8-12" 1-1/16-12" 2.10" 2.250" 0.609"
2406-24-16-SS Stainless Steel 1-1/2" 1" 1-7/8-12" 1-5/16-12" 2.15" 2.250" 0.844"
2406-24-20 Stainless Steel 1-1/2" 1-1/4" 1-7/8-12" 1-5/8-12" 2.19" 2.250" 1.078"
2406-32-08-SS Stainless Steel - - - - - - -
2406-04-04-BLANK Steel - - - - - - -
2406-06-06-BLANK Steel - - - - - - -
2406-08-08-BLANK Steel - - - - - - -
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
