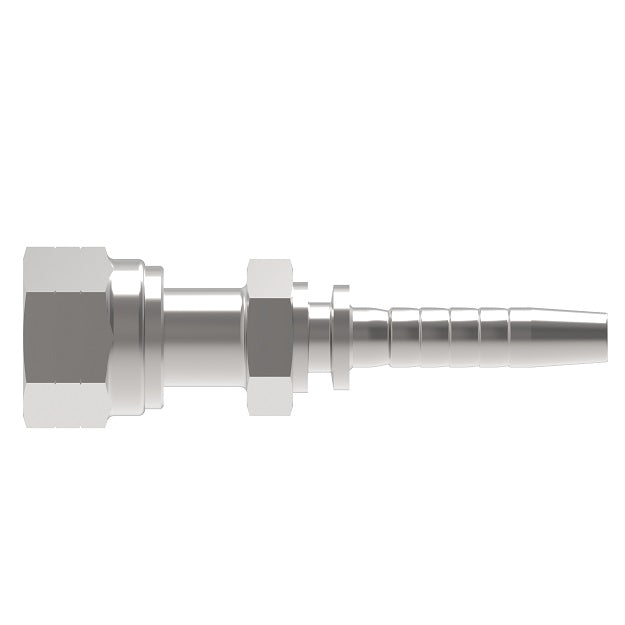

24211D-06-06ZF Winner by Danfoss | Female ORS 2-Piece Hose Crimp Fitting (with Backup Hex) | -06 Female O-Ring Face Seal x -06 Hose Barb | Steel
24211D-06-06ZF Winner by Danfoss | Female ORS 2-Piece Hose Crimp Fitting (with Backup Hex) | -06 Female O-Ring Face Seal x -06 Hose Barb | Steel
24211D-06-06ZF Winner by Danfoss | Female ORS 2-Piece Hose Crimp Fitting (with Backup Hex) | -06 Female O-Ring Face Seal x -06 Hose Barb | Steel
24211D-06-06ZF Winner by Danfoss | Female ORS 2-Piece Hose Crimp Fitting (with Backup Hex) | -06 Female O-Ring Face Seal x -06 Hose Barb | Steel

24211D-06-06ZF Winner by Danfoss | Female ORS 2-Piece Hose Crimp Fitting (with Backup Hex) | -06 Female O-Ring Face Seal x -06 Hose Barb | Steel

$25.14 - $25.14
$25.14
$25.14 - $25.14
$25.14

Winner by Danfoss
Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - Straight

Note: This part has a backup hex.
Specifications for Variant SKU: 24211D-06-06ZF Danfoss
Brand: Winner
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 1

 Hex 2
24211D-04-04ZF -04 9/16-18 6 -04 2.20" 1.10" 0.16" 19mm 17mm
24211D-06-04ZF -06 11/16-16 6 -04 2.38" 1.28" 0.16" 22mm 22mm
24211D-06-06ZF -06 11/16-16 10 -06 2.50" 1.32" 0.28" 22mm 22mm
24211D-06-08ZF -06 11/16-16 12 -08 2.58" 1.34" 0.39" 22mm 22mm
24211D-08-06ZF -08 13/16-16 10 -06 2.58" 1.40" 0.28" 24mm 24mm
24211D-08-08ZF -08 13/16-16 12 -08 2.66" 1.42" 0.39" 24mm 24mm
24211D-08-10ZF -08 13/16-16 16 -10 2.80" 1.46" 0.47" 24mm 24mm
24211D-10-08SMZF -10 1-14 12 -08 2.76" 1.52" 0.39" 24mm 30mm
24211D-10-08ZF -10 1-14 12 -08 2.85" 1.61" 0.39" 30mm 30mm
24211D-10-10SMZF -10 1-14 16 -10 2.91" 1.54" 0.45" 24mm 30mm
24211D-10-10ZF -10 1-14 16 -10 2.99" 1.65" 0.47" 30mm 30mm
24211D-10-12ZF -10 1-14 20 -12 3.21" 1.69" 0.59" 30mm 30mm
24211D-12-08ZF -12 1-3/16-12 12 -08 2.98" 1.74" 0.39" 36mm 36mm
24211D-12-10ZF -12 1-3/16-12 16 -10 3.13" 1.79" 0.47" 36mm 36mm
24211D-12-12ZF -12 1-3/16-12 20 -12 3.31" 1.79" 0.59" 36mm 36mm
24211D-12-16ZF -12 1-3/16-12 25 -16 3.68" 1.83" 0.82" 36mm 36mm
24211D-16-12ZF -16 1-7/16-12 20 -12 3.41" 1.89" 0.59" 41mm 41mm
24211D-16-16ZF -16 1-7/16-12 25 -16 3.78" 1.93" 0.82" 41mm 41mm
