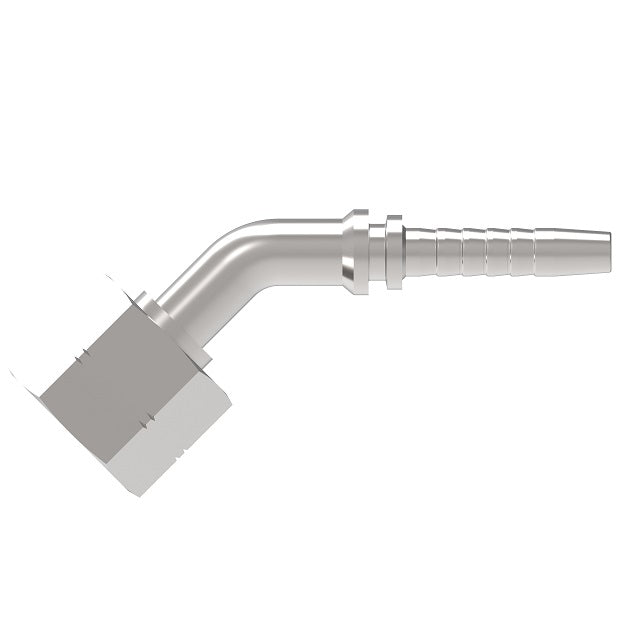

24241-10-10H16ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | 45° Elbow | 16mm Drop | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
24241-10-10H16ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | 45° Elbow | 16mm Drop | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
24241-10-10H16ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | 45° Elbow | 16mm Drop | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
24241-10-10H16ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | 45° Elbow | 16mm Drop | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

24241-10-10H16ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | 45° Elbow | 16mm Drop | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

$45.48 - $45.48
$45.48
$45.48 - $45.48
$45.48

Winner by Danfoss
Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - 45° Elbow
Specifications for Variant SKU: 24241-10-10H16ZF Danfoss
Brand: Winner
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: Swivel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash H Hex 1
24241-04-04H10ZF -04 9/16-18 6 -04 2.34" 1.36" 0.15" 0.39" 17mm
24241-04-06H10ZF -04 9/16-18 10 -06 2.63" 1.45" 0.28" 0.39" 17mm
24241-06-06H11ZF -06 11/16-16 10 -06 2.56" 1.37" 0.28" 0.43" 22mm
24241-08-08H15ZF -08 13/16-16 12 -08 3.19" 1.94" 0.39" 0.58" 24mm
24241-10-10H16ZF -10 1-14 16 -10 3.41" 2.07" 0.47" 0.63" 30mm
24241-12-12H21ZF -12 1-3/16-12 20 -12 4.21" 2.69" 0.59" 0.83" 36mm
24241-06-04H11TZF -06 11/16-16 6 -04 2.50" 1.40" 0.15" 0.43" 22mm
24241-08-06H15TZF -08 13/16-16 10 -06 2.81" 1.63" 0.27" 0.59" 24mm
24241-10-08H16TZF -10 1-14 12 -08 3.24" 2.00" 0.39" 0.63" 30mm
24241-16-16H24TZF -16 1-7/16-12 25 -16 4.86" 3.01" 0.82" 0.94" 41mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
