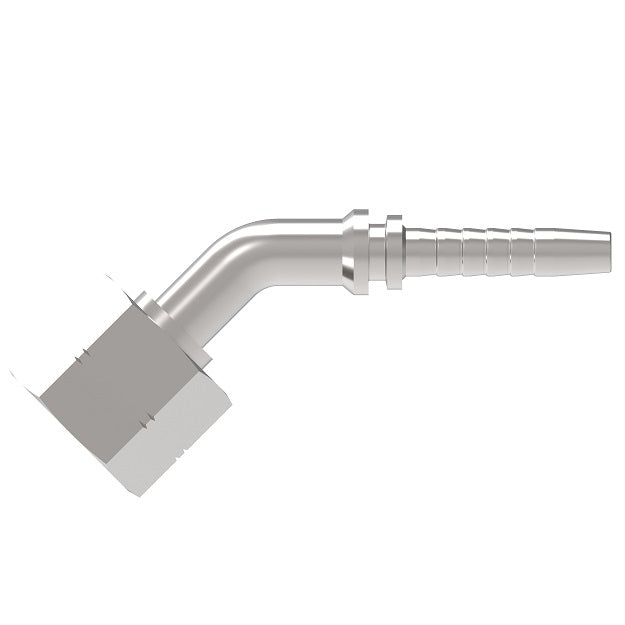

24241-16-16H24TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting (with Captive Nut) | 45° Elbow | 24mm Drop | -16 Female O-Ring Face Seal Swivel x -16 Tube OD | Steel
24241-16-16H24TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting (with Captive Nut) | 45° Elbow | 24mm Drop | -16 Female O-Ring Face Seal Swivel x -16 Tube OD | Steel
24241-16-16H24TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting (with Captive Nut) | 45° Elbow | 24mm Drop | -16 Female O-Ring Face Seal Swivel x -16 Tube OD | Steel
24241-16-16H24TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting (with Captive Nut) | 45° Elbow | 24mm Drop | -16 Female O-Ring Face Seal Swivel x -16 Tube OD | Steel

24241-16-16H24TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting (with Captive Nut) | 45° Elbow | 24mm Drop | -16 Female O-Ring Face Seal Swivel x -16 Tube OD | Steel

$103.31 - $103.31
$103.31
$103.31 - $103.31
$103.31

Winner by Danfoss
Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - 45° Elbow
Specifications for Variant SKU: 24241-16-16H24TZF Danfoss
Brand: Winner
Shape (Orientation): 45 Degree
Material(s): Steel
Applicable Specs & Approvals: Swivel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash H Hex 1
24241-04-04H10ZF -04 9/16-18 6 -04 2.34" 1.36" 0.15" 0.39" 17mm
24241-04-06H10ZF -04 9/16-18 10 -06 2.63" 1.45" 0.28" 0.39" 17mm
24241-06-06H11ZF -06 11/16-16 10 -06 2.56" 1.37" 0.28" 0.43" 22mm
24241-08-08H15ZF -08 13/16-16 12 -08 3.19" 1.94" 0.39" 0.58" 24mm
24241-10-10H16ZF -10 1-14 16 -10 3.41" 2.07" 0.47" 0.63" 30mm
24241-12-12H21ZF -12 1-3/16-12 20 -12 4.21" 2.69" 0.59" 0.83" 36mm
24241-06-04H11TZF -06 11/16-16 6 -04 2.50" 1.40" 0.15" 0.43" 22mm
24241-08-06H15TZF -08 13/16-16 10 -06 2.81" 1.63" 0.27" 0.59" 24mm
24241-10-08H16TZF -10 1-14 12 -08 3.24" 2.00" 0.39" 0.63" 30mm
24241-16-16H24TZF -16 1-7/16-12 25 -16 4.86" 3.01" 0.82" 0.94" 41mm
