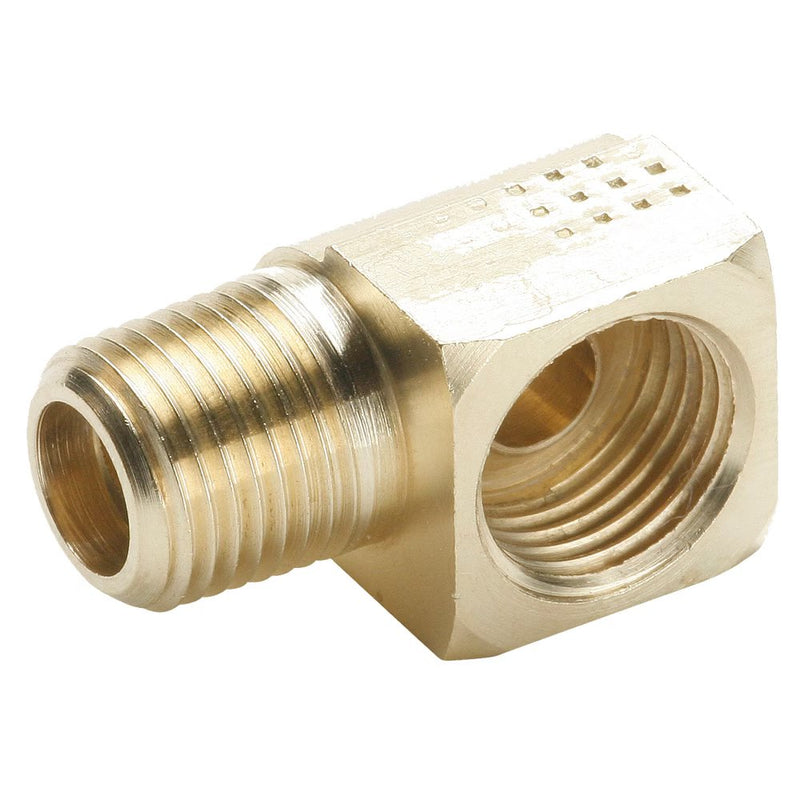

249IFHD-4-4 by Parker | Inverted Flare Fittings | 1/4" Inverted Flare x 1/4" Male Pipe Thread | 1.10" length | 90° Elbow | Brass | Pack of 10

249IFHD-4-4 by Parker | Inverted Flare Fittings | 1/4" Inverted Flare x 1/4" Male Pipe Thread | 1.10" length | 90° Elbow | Brass | Pack of 10

Save $5.88 Save $5.88
$64.63
$64.63 - $64.63
$64.63
$58.75
$58.75 - $58.75
$58.75

by Parker Hannifin
Inverted Flared Fittings:Male Elbow 249IFHD

Package Quantity: 10 Units

Specifications for Variant SKU: 249IFHD-4-4 Parker | 10 |
Series: 249IFHD Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Fuel Grade, UL Listed
Product Features:
  • All brass construction
  • UL listed for flammable liquid and gas
  • Meets functional requirements of SAE J512
  • Steel nut for economy
Markets:
  • Air Conditioning
  • Marine
  • Mobile
  • Engines
Applications:
  • Refrigerant Lines
  • Brake Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Aluminum
  • Welded Steel Hydraulic Tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
249IFHD-2-2 1/8" 1/8" 5/16"-28 .79" .27" .58" .078"
249IFHD-3-2 3/16" 1/8" 3/8"-24 .85" .27" .61" .125"
249IFHD-4-2+ 1/4" 1/8" 7/16"-24 .92" .33" .65" .189"
249IFHD-4-4 1/4" 1/4" 7/16"-24 1.10" .28" .82" .189"
249IFHD-5-4 5/16" 1/4" 1/2"-20 1.16" .45" .86" .220"
249IFHD-6-2+ 3/8" 1/8" 5/8"-18 1.13" .53" .76" .220"
249IF-6-4† 3/8" 1/4" 5/8"-18 1.26" .45" .92" .282"
249IFHD-6-4 3/8" 1/4" 5/8"-18 1.32" .53" .95" .282"
249IFHD-6-6 3/8" 3/8" 5/8"-18 1.32" .50" .94" .282"
249IFHD-8-4+ 1/2" 1/4" 3/4"-18 1.48" .59" 1.02" .407"
249IF-8-6+ 1/2" 3/8" 3/4"-18 1.42" .53" .99" .407"
249IFHD-8-6+ 1/2" 3/8" 3/4"-18 1.48" .59" 1.02" .407"
249IFHD-8-8 1/2" 1/2" 3/4"-18 1.67" .66" 1.22" .407"
249IFHD-10-6+ 5/8" 3/8" 7/8"-18 1.62" .67" 1.09" .531"
249IFHD-10-8+ 5/8" 1/2" 7/8"-18 1.82" .67" 1.29" .533"

† Light Duty Series

+For these parts the pipe thread through hole is smaller than the through hole on the flare end.
