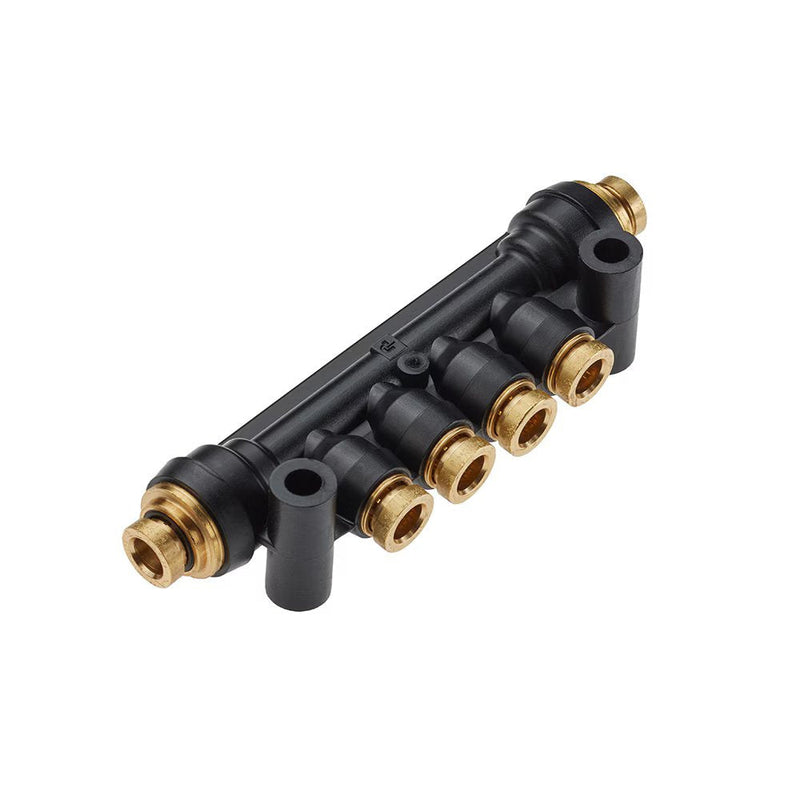

24M-8-6446 by Parker | Manifold | 1/2" Manifold with two 3/8" and two 1/4" Ports | 6.51" Length | Composite

24M-8-6446 by Parker | Manifold | 1/2" Manifold with two 3/8" and two 1/4" Ports | 6.51" Length | Composite

Save $11.67 Save $11.67
$142.60
$142.60 - $142.60
$142.60
$130.93
$130.93 - $130.93
$130.93

by Parker Hannifin
PTC & PTCR Composite Fittings:Presto Manifold 24M
Specifications for Variant SKU: 24M-8-6446 Parker
Series: 24M Series
Shape (Orientation): Manifold
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube OD Inlet Tube OD Outlet A B D G H M M1 N
24M-4-4 1/4" 1/4" 1.33" 4.15" .21" 2.75" .53" .90" .88" .89"
24M-6-4 3/8" 1/4" 1.33" 3.99" .21" 2.75" .53" .90" .88" .89"
24M-6-6 3/8" 3/8" 1.65" 6.49" .22" 4.55" .60" 1.02" 1.02" 1.33"
24M-8-8 1/2" 1/2" 1.65" 6.49" .22" 4.55" .60" 1.02" 1.02" 1.33"
24M-8-6446 1/2" 3/8"-1/4" 1.65" 6.51" .22" 4.55" .64" 1.02" 1.02" 1.17"
