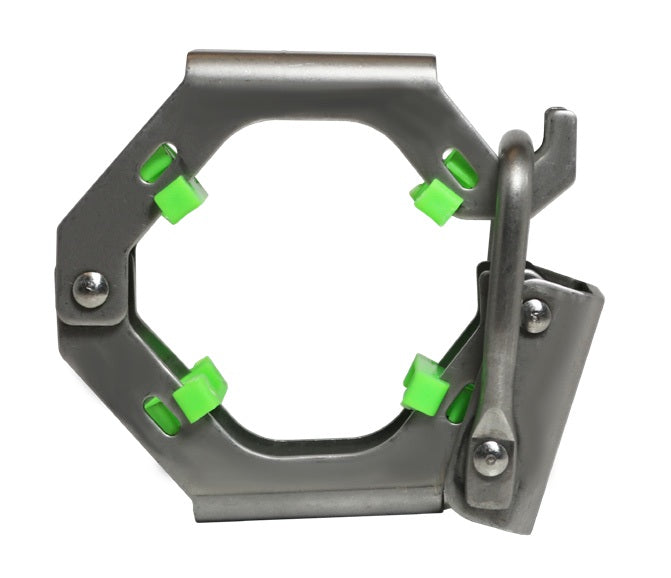

24THP40 by Dixon Valve | 24TH-Series | Sanitary Threadless Tube Hanger with Polypropylene Clips | 4" Size | 304 Stainless Steel

24THP40 by Dixon Valve | 24TH-Series | Sanitary Threadless Tube Hanger with Polypropylene Clips | 4" Size | 304 Stainless Steel

Save $2.87 Save $2.87
$25.83
$25.83 - $25.83
$25.83
$22.96
$22.96 - $22.96
$22.96

Dixon Valve
24TH-Series | Threadless Tube Hanger with Polypropylene Clips

This tube hanger incorporates a snap-secure latch system that simplifies and significantly reduces installation times by eliminating the standard thread design.

The snap-in clips guide and protect your tubing.
Specifications for Variant SKU: 24THP40 Dixon
Series: 24TH-Series
Material(s): 304 Stainless Steel
Applicable Specs & Approvals: MSS SP-58
Applications:
  • Mounted processing lines.
  • Skid building.
Features:
  • Partial open position allows for adjustment of tubing prior to final lock in.
  • Threadless design and bacteria-resistant architecture.
  • The snap-in clip assembly makes this hanger easy to assemble.
  • Optionally compatible with our standard sleeve (clips removed).
  • Save time on installation with no tools needed.
  • Meets MSS SP-58 load ratings.
Specifications:
  • Mounting: compatible with up to 3/4" diameter rod
  • Materials of construction:
    • Top and bottom halves and latch: 304 stainless steel
    • Hook: 304 stainless steel spring wire
    • Clips: polypropylene
    • Sleeve: polypropylene
Safety Notes:
  • NOTE: The polypropylene clips and sleeve are not to be used together.
Part Number Size Replacement Clip
A B C D E
24THP10 1" 2.9" 1.0" 3.2" 4.0" 3.5" 24TH-PC
24THP15 1-1/2" 3.4" 1.6" 3.2" 4.4" 3.5" 24TH-PC
24THP25 2-1/2" - - - - - 24TH-PC
24THP30 3" 5.0" 1.8" 4.7" 6.0" 5.0" 24TH-PC
24THP40 4" 6.1" 2.3" 5.8" 7.1" 6.2" 24TH-PC
Part Number Size Replacement Sleeve
A B C D E
24THS10 1" 2.9" 1.0" 3.2" 4.0" 3.5" 24TH-PS-100
24THS15 1-1/2" 3.4" 1.6" 3.2" 4.4" 3.5" 24TH-PS-150
24THS20 2" 3.8" 1.8" 3.3" 4.8" 3.7" 24TH-PS-200
24THS25 2-1/2" - - - - - 24TH-PS-250
24THS30 3" 5.0" 1.8" 4.7" 6.0" 5.0" 24TH-PS-300
24THS40 4" 6.1" 2.3" 5.8" 7.1" 6.2" 24TH-PS-400
