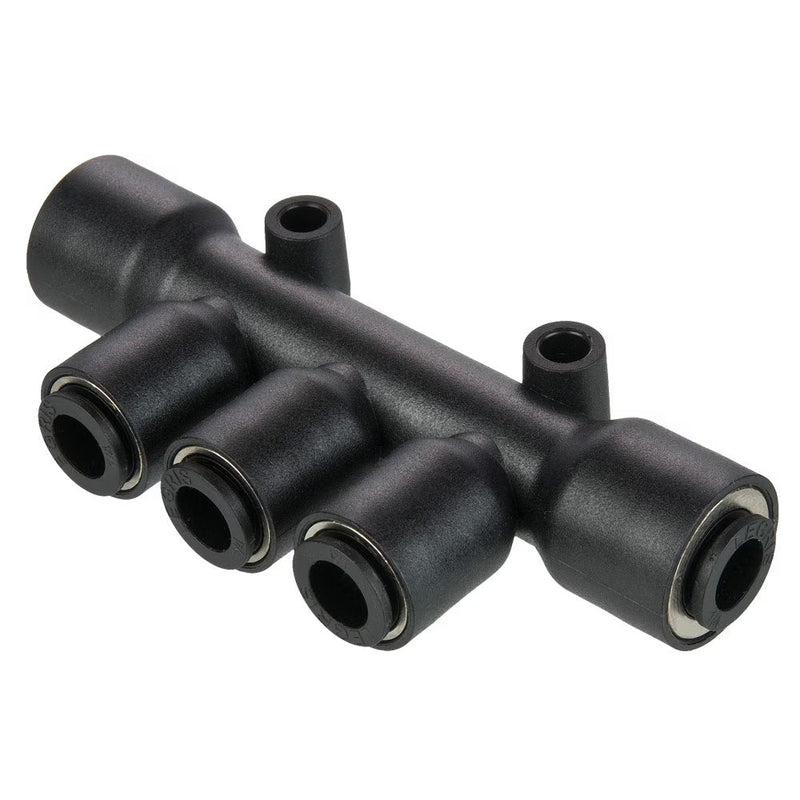

24PLP-8M-4M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 8mm to 4mm Double Manifold Tube Size | 74mm Length (L) | 4.2mm Mounting Hole Diameter | Multiple Tee | Glass-Reinforced Nylon | Pack of 10

Save $86.87

$217.17

$217.17 - $217.17

$217.17

$130.30

$130.30 - $130.30

$130.30

by Parker Hannifin
Push-to-Connect Fittings:24PLP Multiple Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 24PLP-8M-4M Parker \| 10 \|
Series:	24PLP Series
Shape (Orientation):	Manifold
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	L	N	Mounting Hole Diameter
24PLP-6M-4M	6 mm	4 mm	24.5 mm	74 mm	11.5 mm	4.2 mm
24PLP-8M-4M	8 mm	4 mm	24.5 mm	74 mm	11.5 mm	4.2 mm
24PLP-8M-6M	8 mm	6 mm	24.5 mm	74 mm	11.5 mm	4.2 mm
24PLP-10M-6M	10 mm	6 mm	36.0 mm	81 mm	15.5 mm	4.2 mm
24PLP-10M-8M	10 mm	8 mm	36.5 mm	81 mm	15.5 mm	4.2 mm
