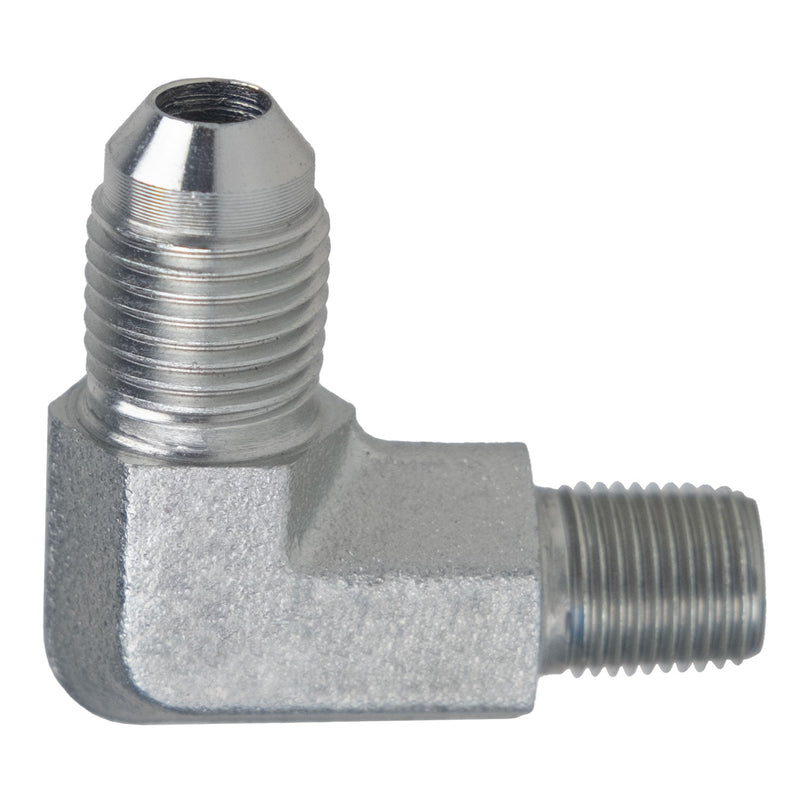

2501L54 by Midland | Hydraulic Adapter | 5/16" Male JIC 37° Flare x 1/4" Male NPTF | 90° Elbow | Long | Steel

Save $1.67

$4.18

$4.18 - $4.18

$4.18

$2.51

$2.51 - $2.51

$2.51

Midland Industries
Hydraulic Adapters: JIC 90° Male Elbow (Long) - Steel

Specifications for Variant SKU: 2501L54 Midland
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Male JIC, 1/4in Male NPTF
Material(s):	Steel

Technical Info:
Midland Industries Hydraulics Technical Info.PDF


Part Number	JIC Tube Size (1)	JIC Tube Size Thread (1)	Male Pipe (2)
2501L52	5/16"	1/2-20	1/8"
2501L54	5/16"	1/2-20	1/4"
2501L62	3/8"	9/16-18	1/8"
2501L66	3/8"	9/16-18	3/8"
2501-L-06-08	3/8"	9/16-18	1/2"
2501L86	1/2"	3/4-16	3/8"
2501L88	1/2"	3/4-16	1/2"
2501-L-08-12	7/8"	1-13/16-12	3/4"
2501L108	5/8"	7/8-14	1/2"
2501L1212	3/4"	1-1/16-12	3/4"
2501-L-16-12	1"	1-5/16-12	3/4"
2501L1616	1"	1-5/16-12	1"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
