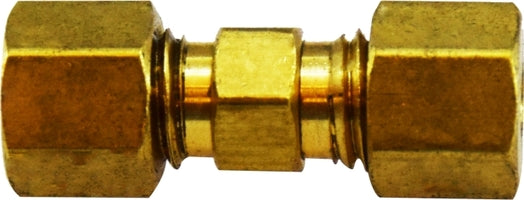

25062 (25-062) Midland Split Sleeve DOT Fitting - Double End Union - 1/8" Tube OD - Brass

25062 by Midland | Split Sleeve DOT Fitting | Double End Union | 1/8" Tube OD | Brass

Save $0.69 Save $0.69
$6.22
$6.22 - $6.22
$6.22
$5.53
$5.53 - $5.53
$5.53

Midland Industries
Brass Fitting - Split Sleeve D.O.T. Fitting - Double End Union - Brass

Transmission Brass Fitting

Inventory @ Manufacturers Warehouse: 208 Units
Specifications for Variant SKU: 25062 Midland
Shape (Orientation): Straight
Ends Configuration: 1/8in Tube Compression, 1/8in Tube Compression, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable D.O.T. Requirements

SPECIFICATIONS

Applications: Ideally suited for use in passive protected air transmission applications. A specially designed slotted sleeve helps eliminate notch stress related to over torque. Used With: Used with SAE J844 Type A nylon tube in pressure protected air transmission applications.
SAE Rating: SAE J844 Conformance: N/A
Vibration: Withstands variations from -40°F to +220°F (-40°C to + 104°C) Temperature Range: -40°F to +220°F (-40°C to + 104°C)
Lead Free: These are NOT Lead Free Tolerance: N/A
Features:
  • Maximum working pressure up to 150 PSI.
Crossover Series:
1462 90792 283 90891
Part Number Tube O.D
38761
(38-761)		 5/32"
25062
(25-062)		 1/8"

NOTE: 25 prefix parts do not have a stake, use 38 part number with white sealant only.

Dimension data can change without notice.
