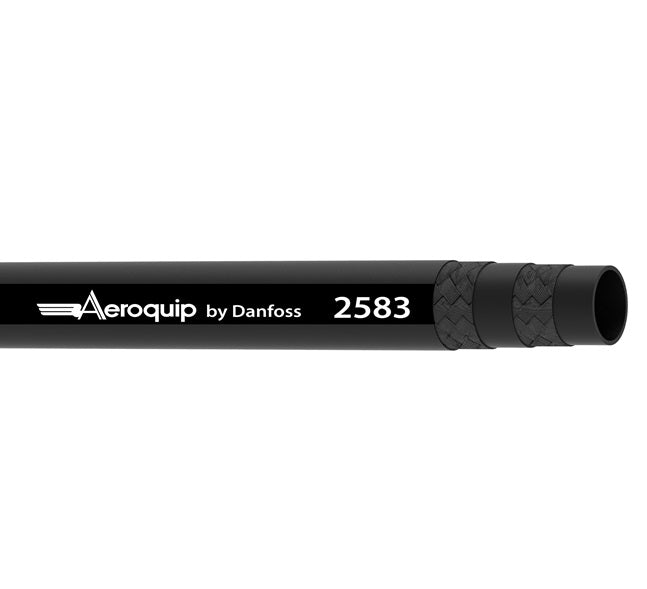

2583-12 Aeroquip by Danfoss | Double Textile Braided Hose | SAE 100R3 | 0.75" ID

2583-12 Aeroquip by Danfoss | Double Textile Braided Hose | SAE 100R3 | 0.75" ID

$11.93 - $11.93
$11.93
$11.93 - $11.93
$11.93

Aeroquip® by Danfoss
2583 Series | Douple Textile Braid General Purpose Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: 2583-12 Danfoss
Brand: Aeroquip
Series: 2583 Series
Hose Color(s): Black
Internal Diameter: 0.75in
Outer Diameter: 1.25in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: EN854 Type R3, SAE 100R3
Hose Properties:
Application: For hydraulics, fuel, lubricating oils, gasoline, air and water.
Not approved for air brake applications.		 SAE Rating: Meets: SAE 100R3, EN 854 Type R3
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: Double Textile Braid Cover: Synthetic Rubber
Temperature Range: -40°F to +212°F (-40°C to +100°C)
Air not to exceed: +161°F (+71°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
2583-4 6 6,4mm 0.25" 14,5mm 0.57" 87,0 bar 1250 psi 350,0 bar 5000 psi 76,2mm 3.00" 0,18 kg/m 0.12 lbs/ft
2583-6 10 9,7mm 0.38" 19,1mm 0.75" 78,0 bar 1125 psi 315,0 bar 4500 psi 101,6mm 4.00" 0,33 kg/m 0.22 lbs/ft
2583-8 13 12,7mm 0.50" 23,9mm 0.94" 70,0 bar 1000 psi 280,0 bar 4000 psi 127,0mm 5.00" 0,39 kg/m 0.26 lbs/ft
2583-12 19 19,1mm 0.75" 31,8mm 1.25" 52,0 bar 750 psi 210,0 bar 3000 psi 152,4mm 6.00" 0,71 kg/m 0.48 lbs/ft
2583-16 25 25,4mm 1.00" 38,1mm 1.50" 39,0 bar 565 psi 157,0 bar 2250 psi 203,2mm 8.00" 0,76 kg/m 0.51 lbs/ft
2583-20 32 31,8mm 1.25" 44,5mm 1.75" 26,0 bar 375 psi 105,0 bar 1500 psi 254,0mm 10.00" 1,09 kg/m 0.73 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
