259-4411-6 Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (2 Piece) | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Stainless Steel

259-4411-6 Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (2 Piece) | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Stainless Steel | Pack of 10

$1,327.80 - $1,327.80

$1,327.80

$1,327.80 - $1,327.80

$1,327.80

Aeroquip® by Danfoss

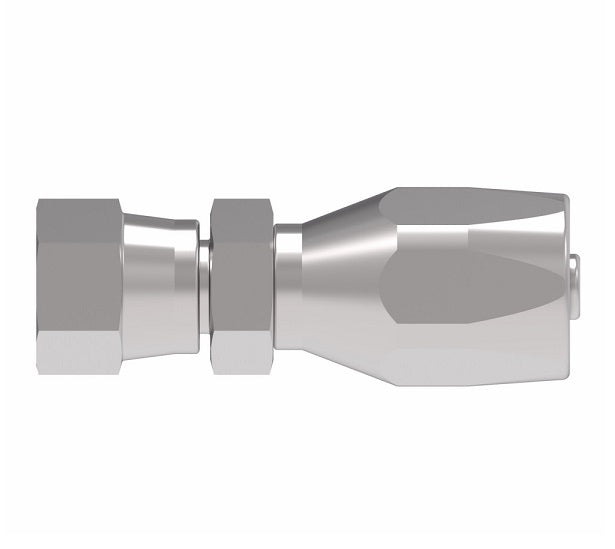

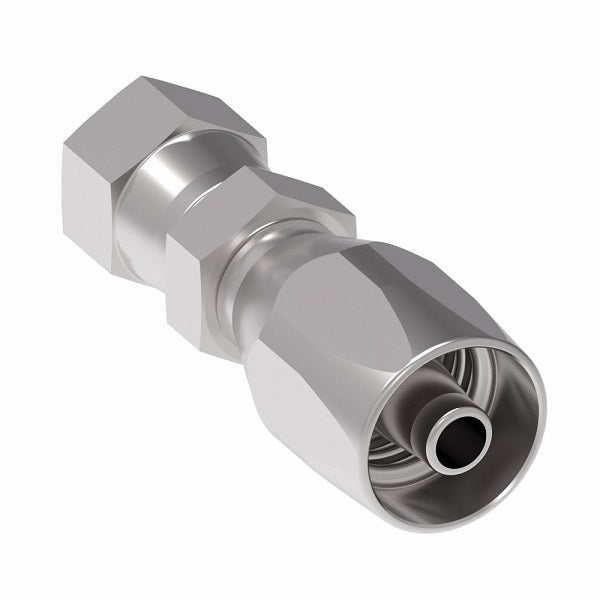

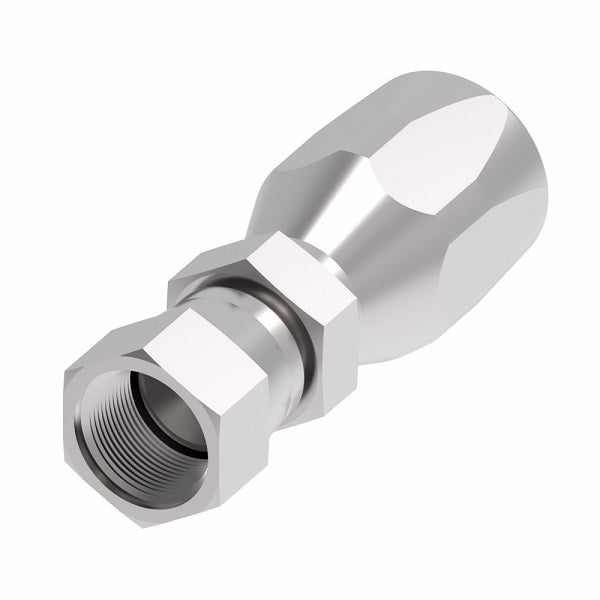

SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

Two Piece Fitting.

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 259-4411-6 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female JIC, 3/8in Reusable Hose End
Material(s):	Stainless Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Stainless Steel Part Number	Hose Size	Thread	A	D	EØ
4411-4S*	259-4411-4	-04	7/16-20	1.97"	1.23"	0.13"
4411-4-5S	-	-05	7/16-20	2.08"	1.30"	0.17"
4411-5S*	259-4411-5	-05	1/2-20	2.12"	1.35"	0.18"
4411-6S	259-4411-6	-06	9/16-18	2.33"	1.43"	0.24"
4411-6-8S	-	-08	9/16-18	2.68"	1.53"	0.30"
4411-8S*	259-4411-8	-08	3/4-16	2.78"	1.62"	0.36"
4411-8-6S*	-	-06	3/4-16	2.42"	1.52"	0.24"
4411-10-8S	-	-08	7/8-14	2.95"	1.80"	0.36"
4411-8-10S*	-	-10	3/4-16	2.92"	1.64"	0.39"
4411-10S*	259-4411-10	-10	7/8-14	3.10"	1.81"	0.46"
4411-12-10S	-	-10	1-1/16-12	3.19"	1.91"	0.46"
4411-10-12S	-	-12	7/8-14	3.40"	1.83"	0.55"
4411-12S	259-4411-12	-12	1-1/16-12	3.46"	1.92"	0.55"
4411-14-12S	-	-12	1-3/16-12	3.56"	1.99"	0.55"
4411-16S	259-4411-16	-16	1-5/16-12	3.19"	1.93"	0.82"
4411-20S	-	-20	1-5/8-12	3.43"	2.07"	1.05"
4411-20-24S	-	-24	1-5/8-12	3.65"	2.19"	1.06"
4411-24S	-	-24	1-7/8-12	3.68"	2.22"	1.28"
4411-32S	-	-32	2-1/2-12	4.39"	2.55"	1.75"

* Threads are Female 37° JIC Swivel/SAE 45° Flare Dual Seat

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
