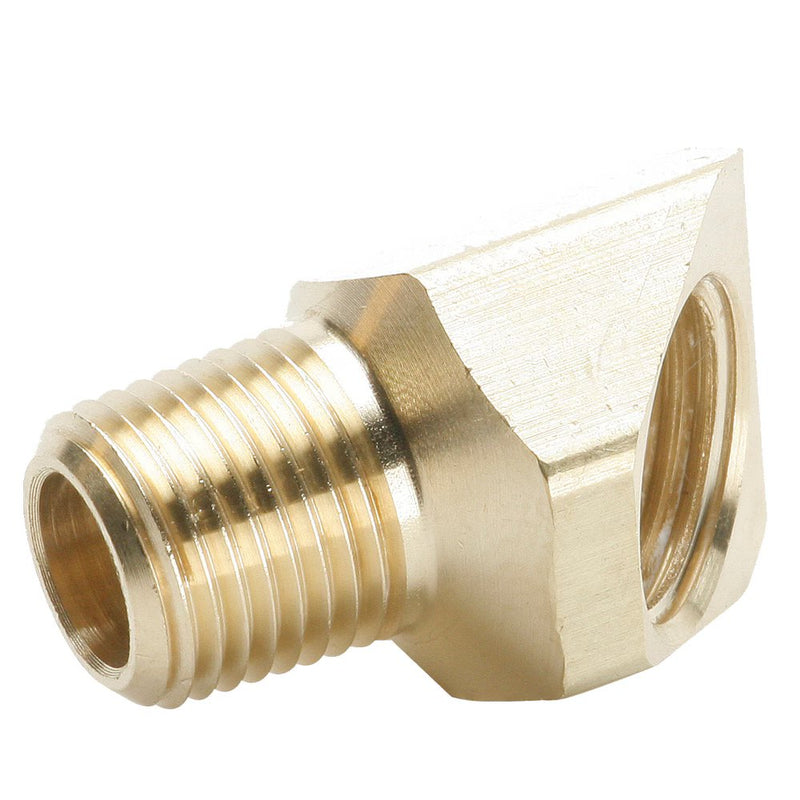

259IFHD-5-2 by Parker | Inverted Flare Fittings | 5/16" Inverted Flare x 1/8" Male Pipe Thread | 5/8" Hex | 1.00" Length | 45° Elbow | Brass | Pack of 10

259IFHD-5-2 by Parker | Inverted Flare Fittings | 5/16" Inverted Flare x 1/8" Male Pipe Thread | 5/8" Hex | 1.00" Length | 45° Elbow | Brass | Pack of 10

Save $98.83 Save $98.83
$247.08
$247.08 - $247.08
$247.08
$148.25
$148.25 - $148.25
$148.25

by Parker Hannifin
Inverted Flared Fittings:45° Elbow 259IFHD

Package Quantity: 10 Units

Specifications for Variant SKU: 259IFHD-5-2 Parker | 10 |
Series: 259IFHD Series
Shape (Orientation): 45° Elbow
Material(s): Brass
Special Properties: Fuel Grade, UL Listed
Product Features:
  • All brass construction
  • UL listed for flammable liquid and gas
  • Meets functional requirements of SAE J512
  • Steel nut for economy
Markets:
  • Air Conditioning
  • Marine
  • Mobile
  • Engines
Applications:
  • Refrigerant Lines
  • Brake Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Aluminum
  • Welded Steel Hydraulic Tubing
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L Flow Diameter (D)
259IFHD-3-2 3/16" 1/8" 3/8"-24 17/32" .88" .125"
259IFHD-4-2 1/4" 1/8" 7/16"-24 9/16" .94" .189"
259IFHD-5-2 5/16" 1/8" 1/2"-20 5/8" 1.00" .220"
259IFHD-5-4 5/16" 1/4" 1/2"-20 5/8" 1.16" .220"
259IFHD-6-4* 3/8" 1/4" 5/8"-18 13/16" 1.34" .282"
259IFHD-8-6 1/2" 3/8" 3/4"-18 7/8" 1.44" .407"
259IFHD-10-8 5/8" 1/2" 7/8"-18 1-1/16" 1.75" .533"

*Does not meet SAE or UL.
