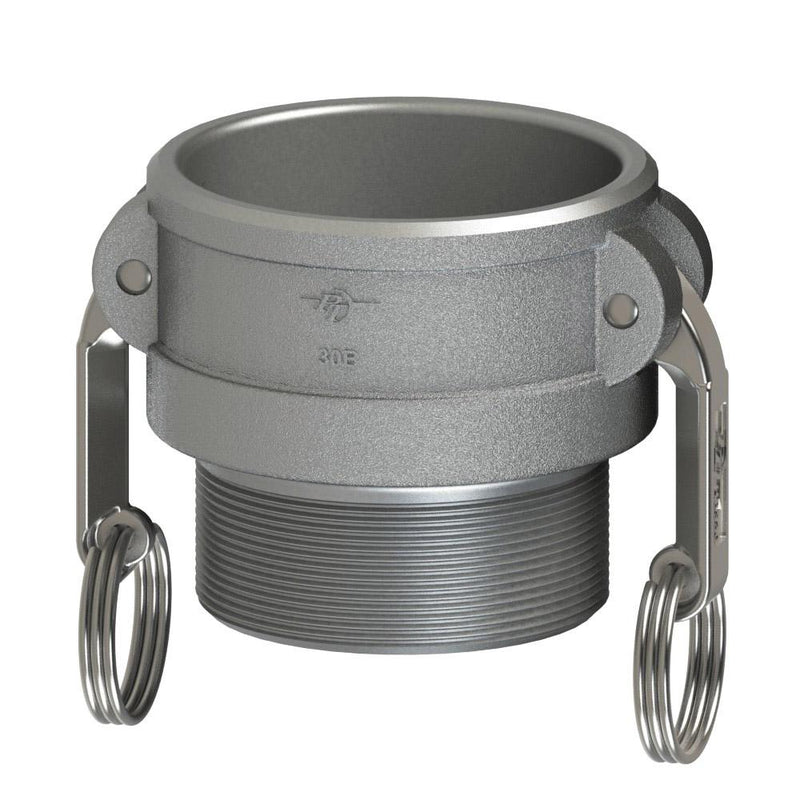

2600210 (10B) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type B | 1" Coupler x 1" Male NPT | Hastelloy | Buna-N Seal

2600210 (10B) by PT-Coupling | Corrosion Resistant Cam & Groove Coupler | Type B | 1" Coupler x 1" Male NPT | Hastelloy | Buna-N Seal

Save $146.69

$395.20

$395.20 - $395.20

$395.20

$248.51

$248.51 - $248.51

$248.51

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type B | Coupler x Male NPT | Hastelloy | Buna-N Seal

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA

Specifications for Variant SKU: 2600210 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	1in Female Cam & Groove, 1in Male NPT
Material(s):	Hastelloy
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Coupler Size	Male NPT Thread	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
07B	2600207	3/4"	3/4"	4.51"	2.11"	2.10"	1.25"	0.78"	250 PSI
10B	2600210	1"	1"	5.10"	2.44"	2.50"	1.56"	0.97"	250 PSI
15B	2600215	1-1/2"	1-1/2"	7.16"	3.56"	2.93"	1.88"	1.50"	250 PSI
20B	2600220	2"	2"	7.54"	3.94"	3.20"	2.15"	1.88"	250 PSI
30B	2600230	3"	3"	9.56"	5.46"	3.82"	2.27"	2.88"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.

Shop Parts by PT-Coupling
