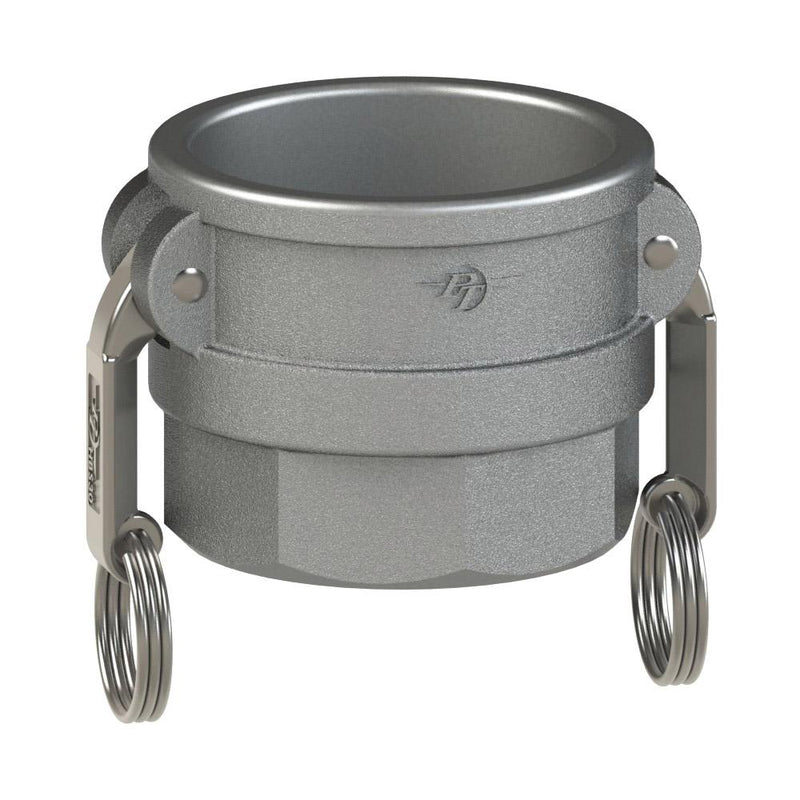

2600440 (40D) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type D | 4" Coupler x 4" Female NPT | Hastelloy | Buna-N Seal

2600440 (40D) by PT-Coupling | Corrosion Resistant Cam & Groove Coupler | Type D | 4" Coupler x 4" Female NPT | Hastelloy | Buna-N Seal

Save $107.39

$966.51

$966.51 - $966.51

$966.51

$859.12

$859.12 - $859.12

$859.12

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Hastelloy | Buna-N Seal

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA

Quantity

Specifications for Variant SKU: 2600440 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	4in Female Cam & Groove, 4in Female NPT
Material(s):	Hastelloy
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Coupler Size	Female NPT Thread	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
07D	2600407	3/4"	3/4"	4.51"	2.11"	2.10"	0.88"	250 PSI
10D	2600410	1"	1"	5.10"	2.44"	2.50"	0.97"	250 PSI
15D	2600415	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	250 PSI
20D	2600420	2"	2"	7.54"	3.94"	3.10"	1.88"	250 PSI
30D	2600430	3"	3"	9.56"	5.46"	3.50"	2.88"	200 PSI
40D	2600440	4"	4"	10.66"	6.56"	3.90"	3.60"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
