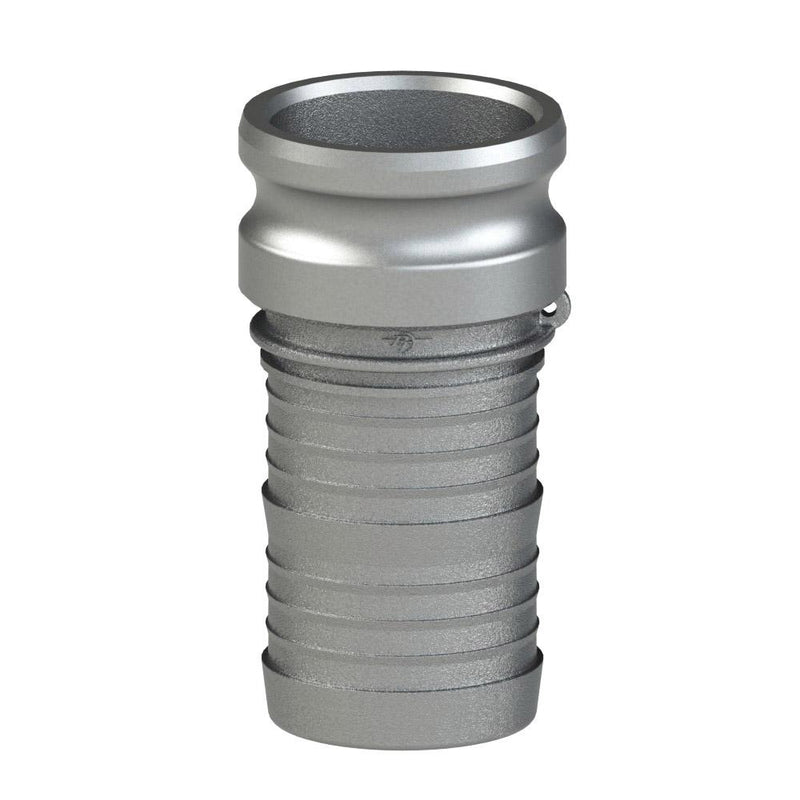

2600520 (20E) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type E | 2" Adapter x 2" Hose Shank | Hastelloy

Name: 2600520 (20E) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type E | 2" Adapter x 2" Hose Shank | Hastelloy
Brand: PT-Coupling
SKU: 2600520 PT-Coupling
Price: 212.95 USD
Availability: InStock

Save $26.62

$239.57

$239.57 - $239.57

$239.57

$212.95

$212.95 - $212.95

$212.95

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type E | Adapter x Hose Shank | Hastelloy

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA

Quantity

Specifications for Variant SKU: 2600520 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	2in Male Cam & Groove, 2in Hose Barb
Material(s):	Hastelloy

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Adapter Size	Hose Shank Size	Outside Diameter (B)	Overall Length (C)	Max. Allowable Working Press. (PSI)*
10E	2600510	1"	1"	1.63"	4.30"	250 PSI
15E	2600515	1-1/2"	1-1/2"	2.14"	5.10"	250 PSI
20E	2600520	2"	2"	2.64"	5.75"	250 PSI
30E	2600530	3"	3"	3.70"	6.88"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
