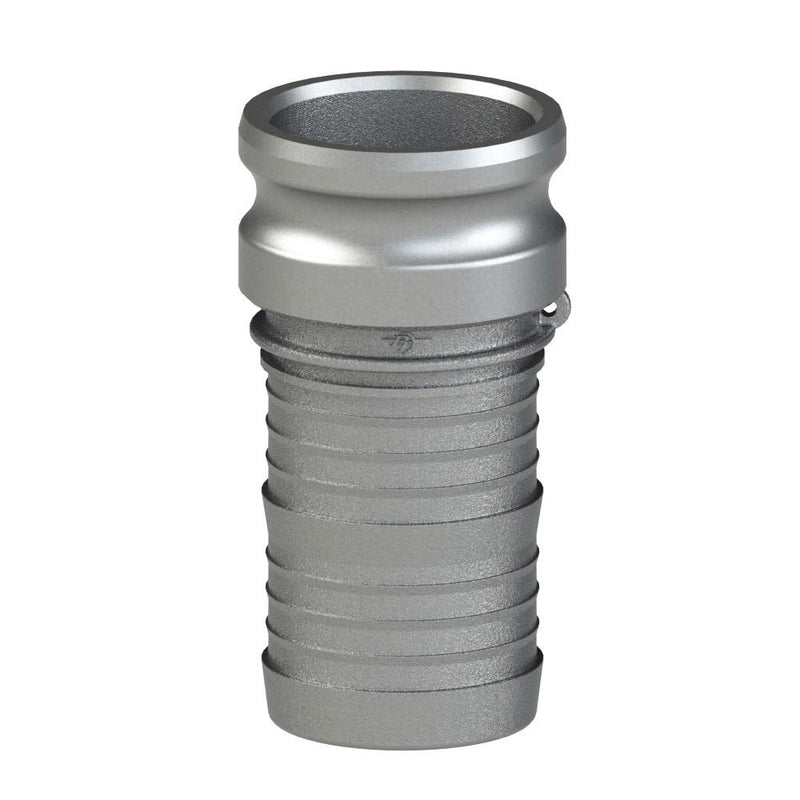

2600530 (30E) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type E | 3" Adapter x 3" Hose Shank | Hastelloy

Name: 2600530 (30E) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type E | 3" Adapter x 3" Hose Shank | Hastelloy
Brand: PT-Coupling
SKU: 2600530 PT-Coupling
Price: 370.45 USD
Availability: InStock

Save $46.31

$416.76

$416.76 - $416.76

$416.76

$370.45

$370.45 - $370.45

$370.45

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type E | Adapter x Hose Shank | Hastelloy

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA

Quantity

Specifications for Variant SKU: 2600530 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	3in Male Cam & Groove, 3in Hose Barb
Material(s):	Hastelloy

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Adapter Size	Hose Shank Size	Outside Diameter (B)	Overall Length (C)	Max. Allowable Working Press. (PSI)*
10E	2600510	1"	1"	1.63"	4.30"	250 PSI
15E	2600515	1-1/2"	1-1/2"	2.14"	5.10"	250 PSI
20E	2600520	2"	2"	2.64"	5.75"	250 PSI
30E	2600530	3"	3"	3.70"	6.88"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
