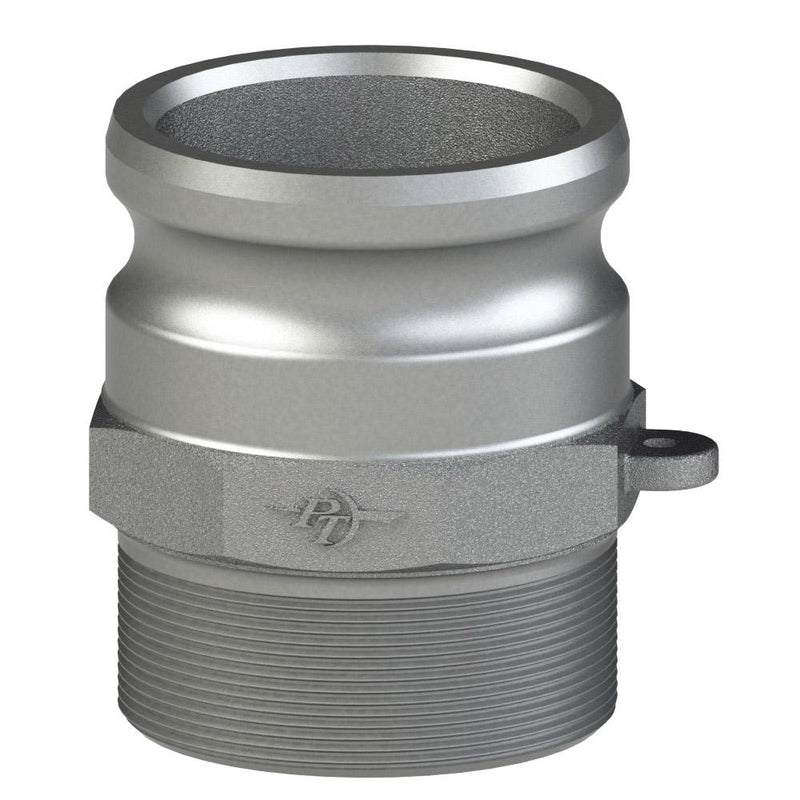

2600610 (10F) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type F | 1" Adapter x 1" Male NPT | Hastelloy

Name: 2600610 (10F) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type F | 1" Adapter x 1" Male NPT | Hastelloy
Brand: PT-Coupling
SKU: 2600610 PT-Coupling
Price: 130.63 USD
Availability: InStock

Save $16.33

$146.96

$146.96 - $146.96

$146.96

$130.63

$130.63 - $130.63

$130.63

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Hastelloy

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA

Quantity

Specifications for Variant SKU: 2600610 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	1in Male Cam & Groove, 1in Male NPT
Material(s):	Hastelloy

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Adapter Size	Male NPT Thread	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Max. Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
07F	2600607	3/4"	3/4"	2.47"	1.67"	0.75"	1.42"	-	250 PSI
10F	2600610	1"	1"	2.89"	1.99"	0.85"	1.75"	0.34"	250 PSI
15F	2600615	1-1/2"	1-1/2"	3.29"	2.31"	1.34"	2.44"	0.30"	250 PSI
20F	2600620	2"	2"	3.57"	2.57"	1.72"	2.84"	0.28"	250 PSI
30F	2600630	3"	3"	4.37"	2.87"	2.80"	4.07"	0.44"	200 PSI
40F	2600640	4"	4"	4.79"	3.19"	3.78"	5.27"	0.40"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
