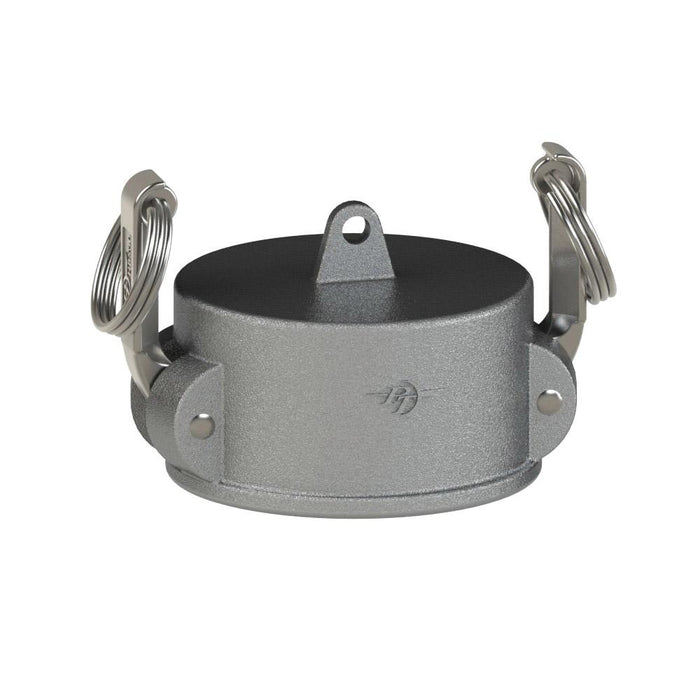

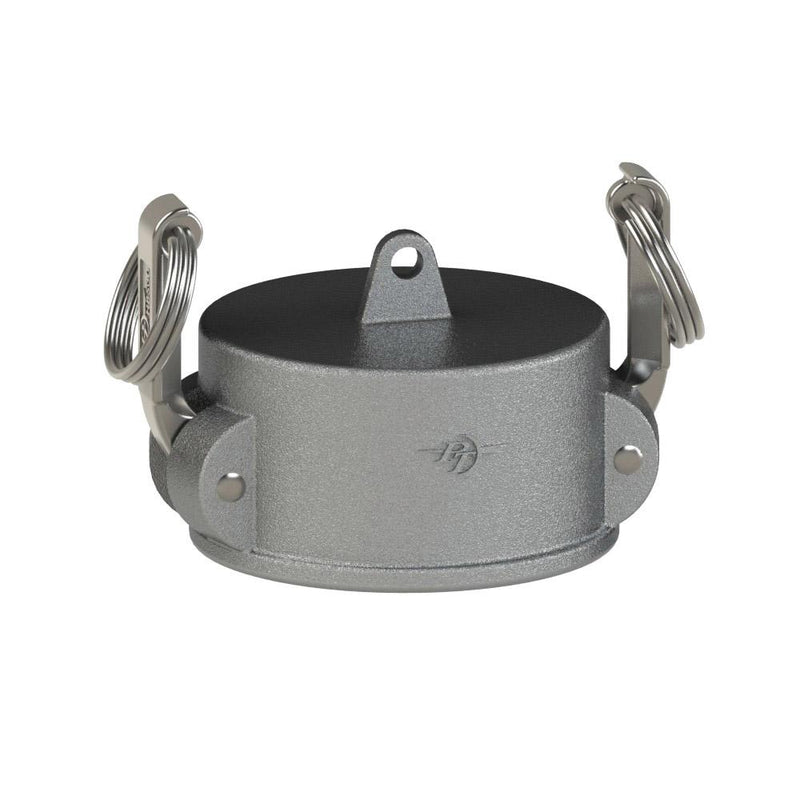

2601101 (E05V) by PT-Coupling | Corrosion Resistant Cam & Groove Dust Cap | Type V | 1/2" Coupler | Hastelloy C

Name: 2601101 (E05V) by PT-Coupling | Corrosion Resistant Cam & Groove Dust Cap | Type V | 1/2" Coupler | Hastelloy C
Brand: PT-Coupling
SKU: 2601101 PT-Coupling
Price: 114.13 USD
Availability: InStock

Save $14.27

$128.40

$128.40 - $128.40

$128.40

$114.13

$114.13 - $114.13

$114.13

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Dust Cap | Type V | Coupler | Hastelloy C

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA

Quantity

Specifications for Variant SKU: 2601101 PT-Coupling
Cam Type:	Type DC
Ends Configuration:	1/2in Female Cam & Groove
Material(s):	Hastelloy C

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Coupler Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
E05V	2601101	1/2"	4.21"	1.82"	1.30"	0.50"	250 PSI
07V	2601107	3/4"	4.51"	2.11"	1.35"	0.50"	250 PSI
10V	2601110	1"	5.10"	2.44"	1.60"	0.62"	250 PSI
15V	2601115	1-1/2"	7.16"	3.56"	1.96"	0.86"	250 PSI
20V	2601120	2"	7.54"	3.94"	2.25"	0.76"	250 PSI
30V	2601130	3"	9.56"	5.46"	2.27"	1.03"	200 PSI
40V	2601140	4"	10.66"	6.56"	2.34"	0.99"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
