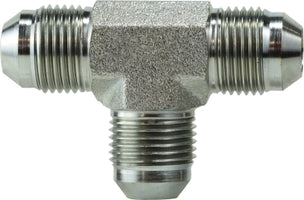

2603-10-10-12 by Midland | Hydraulic JIC Union | 5/8" Male JIC 37° Flare x 5/8" Male JIC 37° Flare x 3/4" Male JIC 37° Flare | Tee | Steel

2603-10-10-12 by Midland | Hydraulic JIC Union | 5/8" Male JIC 37° Flare x 5/8" Male JIC 37° Flare x 3/4" Male JIC 37° Flare | Tee | Steel

Save $4.98 Save $4.98
$12.45
$12.45 - $12.45
$12.45
$7.47
$7.47 - $7.47
$7.47

Midland Industries
Hydraulic Adapters: JIC Union Tee - Steel

Inventory @ Manufacturers Warehouse: 204 Units
Specifications for Variant SKU: 2603-10-10-12 Midland
Shape (Orientation): Tee
Ends Configuration: 5/8in Male JIC, 5/8in Male JIC, 3/4in Male JIC, Some Ends Match
Material(s): Steel
Specifications:
  • SAE 070401
  • MS 51510
Technical Info:
Crossover Series:
2603 2033 JTX 1220 C5705
Part Number Male JIC 37° Flare
(1 & 2)		 Male JIC 37° Flare
Threads
(1 & 2)		 Male JIC 37° Flare
(3)		 Male JIC 37° Flare
Threads
(3)
260322
(2603-2-2) 		1/8" 5/16-24 1/8" 5/16-24
260333
(2603-3-3) 		3/16" 3/8-24 3/16" 3/8-24
260344
(2603-4-4) 		1/4" 7/16-20 1/4" 7/16-20
2603-04-04-06 1/4" 7/16-20 3/8" 9/16-18
260355 5/16" 1/2-20 5/16" 1/2-20
260366
(2603-6-6) 		3/8" 9/16-18 3/8" 9/16-18
2603-06-06-08 3/8" 9/16-18 1/2" 3/4-16
2603-08-08-06 1/2" 3/4-16 3/8" 9/16-18
260388
(2603-8-8) 		1/2" 3/4-16 1/2" 3/4-16
2603-08-08-10 1/2" 3/4-16 5/8" 7/8-14
26031010
(2603-10-10) 		5/8" 7/8-14 5/8" 7/8-14
2603-10-10-12 5/8" 7/8-14 3/4" 1-1/16-12
2603128 3/4" x 1/2 1-1/16-12 x 3/4-16 3/4" 1-1/16-12
26031212
(2603-12-12) 		3/4" 1-1/16-12 3/4" 1-1/16-12
26031616
(2603-16-16) 		1" 1-5/16-12 1" 1-5/16-12
2603-16-16-20 1" 1-5/16-12 1-1/4" 1-5/8-12
26033232 2" 2-1/2-12 2" 2-1/2-12
