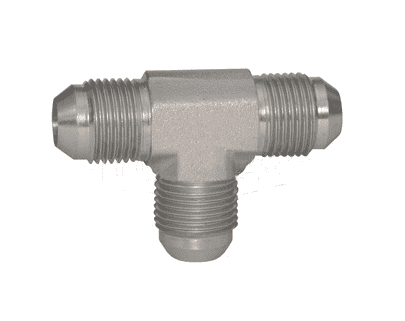

2603-16 Dixon Zinc Plated Steel Union Tee - (Three) 1-5/16"-12 Male 37 deg. JIC Flare

2603-16 Dixon Valve Zinc Plated Steel Union Tee - (Three) 1-5/16"-12 Male 37 deg. JIC Flare

Name: 2603-16 Dixon Valve Zinc Plated Steel Union Tee - (Three) 1-5/16"-12 Male 37 deg. JIC Flare
Brand: Dixon
SKU: 2603-16 Dixon
Price: 15.25 USD
Availability: InStock

Save $1.91

$17.16

$17.16 - $17.16

$17.16

$15.25

$15.25 - $15.25

$15.25

SAE / JIC Fittings - Union Tees - Male 37 deg. JIC Flare - Zinc Plated Steel

Quantity

Specifications for Variant SKU: 2603-16 Dixon
Shape (Orientation):	Tee
Ends Configuration:	1in Male JIC, 1in Male JIC, Some Ends Match
Material(s):	Zink-Plated Steel

Features:
Reference SAE 070401.

Part Number	(Three)Male 37 deg. JIC Flare	Working Pressure	Weight (Lbs.)
2603-4	7/16"-20	5000 PSI	0.0900
2603-6	9/16"-18	5000 PSI	0.1340
2603-8	3/4"-16	4500 PSI	0.2750
2603-10	7/8"-14	3500 PSI	0.4130
2603-12	1-1/16"-12	3500 PSI	0.6800
2603-16	1-5/16"-12	3000 PSI	1.0000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
