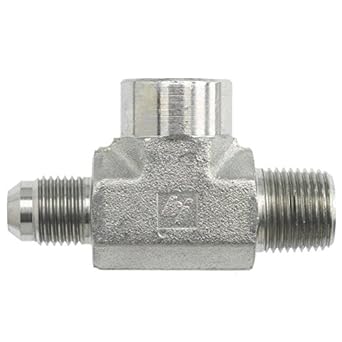

2611-04-04-02-FG by Brennan Inc. | -04 Male JIC x -04 Male Pipe x -02 Female Pipe | Tee | Forged Steel

2611-04-04-02-FG by Brennan Inc. | -04 Male JIC x -04 Male Pipe x -02 Female Pipe | Tee | Forged Steel

$5.27 - $5.27
$5.27
$6.68
$6.68 - $6.68
$6.68

Brennan Inc.
Tube Fittings & Adapters: 2611 - Male JIC x Male Pipe x Female Pipe Tee
Specifications for Variant SKU: 2611-04-04-02-FG Brennan
Shape (Orientation): Tee
Ends Configuration: 1/4in Male JIC, 1/4in Male NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Steel
Part Number Material Tube O.D. B1 SAE 37° A2 NPTF A3 NPTF B1 Drill A2 Drill M Length L Length L1 Length Y Flats
2611-04-02-02-FG Steel 1/4" 7/16-20" 1/8-27" 1/8-27" 0.172" 0.188" 1.080" 0.780" 0.660" 0.562"
2611-04-04-02-FG Steel 1/4" 7/16-20" 1/4-18" 1/8-27" 0.172" 0.281" 1.220" 1.090" 0.690" 0.562"
2611-04-04-04-FG Steel 1/4" 7/16-20" 1/4-18" 1/4-18" 0.172" 0.281" 1.220" 1.090" 0.880" 0.750"
2611-06-04-04-FG Steel 3/8" 9/16-18" 1/4-18" 1/4-18" 0.297" 0.281" 1.230" 1.090" 0.880" 0.750"
2611-06-06-04-FG Steel 3/8" 9/16-18" 3/8-18" 3/8-18" 0.297" 0.406" 1.310" 1.220" 1.020" 0.875"
2611-08-06-06-FG Steel 1/2" 3/4-16" 3/8-18" 3/8-18" 0.391" 0.406" 1.420" 1.220" 1.020" 0.875"
2611-08-08-08-FG Steel 1/2" 3/4-16" 1/2-14" 1/2-14" 0.391" 0.531" 1.520" 1.470" 1.230" 1.062"
2611-12-12-12-FG Steel 3/4" 1-1/16-12" 3/4-14" 3/4-14" 0.609" 0.719" 1.890" 1.590" 1.360" 1.312"
2611-16-16-16-FG Steel 1" 1-5/16-12" 1-11-1/2" 1-11-1/2" 0.844" 0.938" 2.170" 1.970" 1.620" 1.625"
2611-20-20-20-FG Steel 1-1/4" 1-5/8-12" 1-1/4-11-1/2" 1-1/4-11-1/2" 1.078" 1.250" 2.330" 2.380" 1.700" 1.875"

2611-12-12-12-SS Stainless Steel 3/4" 1-1/16-12" 3/4-14" 3/4-14" 0.609" 0.719" 1.890" 1.590" 1.360" 1.312"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
