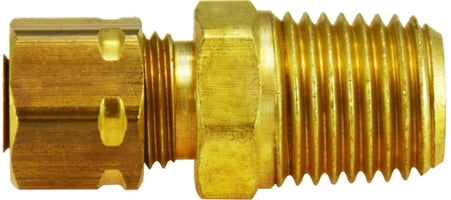

26180L by Midland | Captive Sleeve Compression Fitting | Light Pattern Male Adapter | 1/4" Tube OD x 1/4" Male NPTF | Straight | Brass

Save $0.18

$1.61

$1.61 - $1.61

$1.61

$1.43

$1.43 - $1.43

$1.43

Midland Industries
Brass Fitting - Captive Sleeve Compression Fitting - Male Adapter - Captive Sleeve x Male NPTF - Brass

(Interchangeable with compress-align fittings.)

Inventory @ Manufacturers Warehouse: 3 Units

Quantity

Specifications for Variant SKU: 26180L Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Tube Compression, 1/4in Male NPTF
Material(s):	Brass

Crossover Series:
68SA	CS68	68CA

Part Number	Size
26175	1/8" x 1/16"
26176 (26-176)	1/8" x 1/8"
26177 (26-177)	3/16" x 1/8"
26178	3/16" x 1/4"
26179 (26-179)	1/4" x 1/8"
26180 (26-180)	1/4" x 1/4"
26180L*	1/4" x 1/4"
26181 (26-181)	1/4" x 3/8"
26182	1/4" x 1/2"
26183 (26-183)	5/16" x 1/8"
26184 (26-184)	5/16" x 1/4"
26188 (26-188)	3/8" x 1/4"
26189 (26-189)	3/8" x 3/8"
26190 (26-190)	3/8" x 1/2"
26193	1/2" x 1/4"
26194	1/2" x 3/8"
26182 (26-195)	1/2" x 1/2"
26198	5/8" x 1/2"

* "L" at the end of a Part# means Light Pattern: These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
