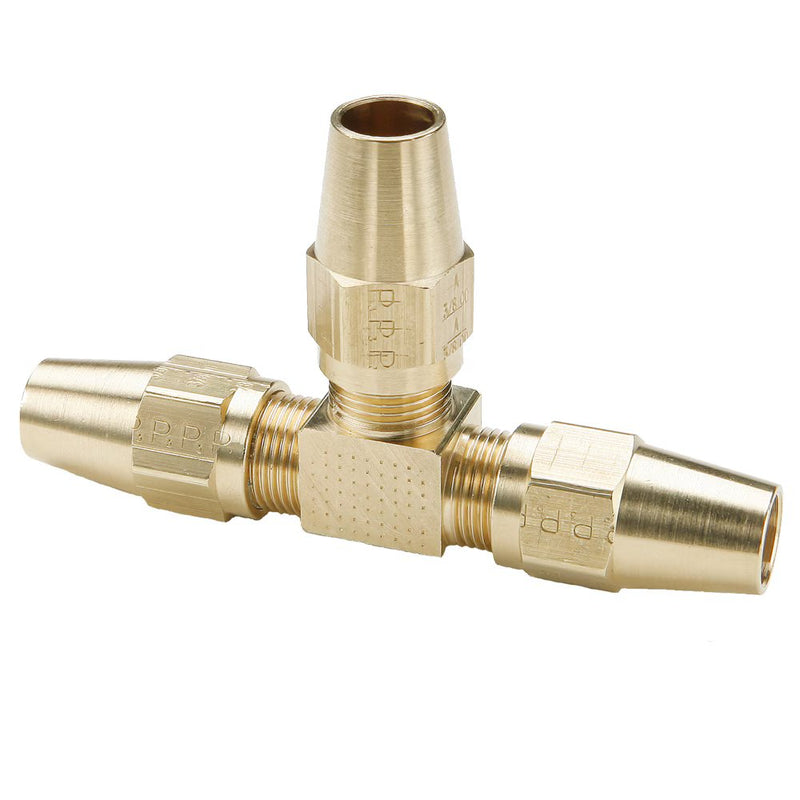

264AB-8 by Parker | Air Brake - AB Fittings | Union | 1/2" Tube Size x 11/16" Thread | 1.89" Length | Tee | Brass | Pack of 5

Save $131.68

$329.20

$329.20 - $329.20

$329.20

$197.52

$197.52 - $197.52

$197.52

by Parker Hannifin
Air Brake – AB Fittings:Union Tee 264AB

Package Quantity: 5 Units

Specifications for Variant SKU: 264AB-8 Parker \| 5 \|
Series:	264AB Series
Shape (Orientation):	Tee
Material(s):	Brass
Special Properties:	Fuel Grade, Reuseable

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 Reusable Pre-applied Thread Sealant
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Copper Air Brake Lines Coolant Lines Fuel Lines
Pressure Range:	Up to 400 PSI (27.5 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:	Copper Air Brake Tubing


Part Number	Tube Size	Straight Thread	L	M	Flow Diameter (D)
264AB-4	1/4"	7/16"-24	1.20"	.62"	.189"
264AB-6	3/8"	17/32"-24	1.67"	.78"	.314"
264AB-8	1/2"	13/16"-20	1.89"	.93"	.408"
264AB-10	5/8"	13/16"-18	2.18"	1.09"	.533"
