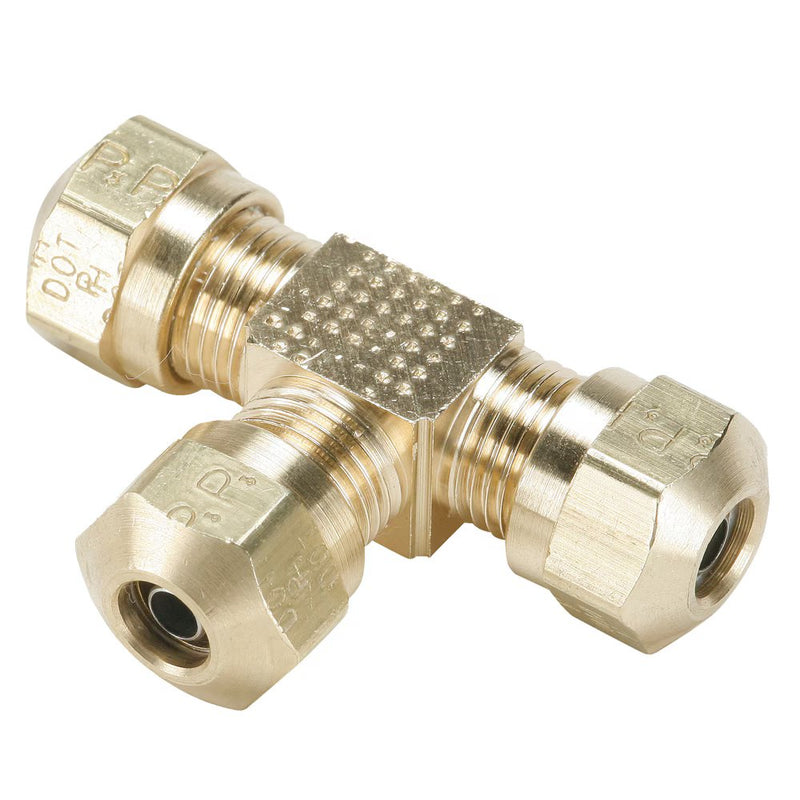

264NTA-4 by Parker | Air Brake–NTA® Fittings | Union | 1/4" Tube Size x 7/16" Thread | 1.90" Length | Tee | Brass | Pack of 10

Save $116.24

$290.60

$290.60 - $290.60

$290.60

$174.36

$174.36 - $174.36

$174.36

by Parker Hannifin
Air Brake–NTA® Fittings:Union Tee 264NTA

Package Quantity: 10 Units

Specifications for Variant SKU: 264NTA-4 Parker \| 10 \|
Brand:	Air Brake–NTA®
Series:	264NTA Series
Shape (Orientation):	Tee
Material(s):	Brass

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 & SAE J1131 Pre-applied Thread Sealant Nickel Plated Versions Available for Bio-diesel
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines Cab Controls
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Straight Thread	L	M	Flow Diameter (D)
264NTA-4	1/4"	7/16"-24	.95"	.62"	.137"
264NTA-6	3/8"	17/32"-24	1.24"	.78"	.217"
264NTA-8	1/2"	11/16"-20	1.45"	.93"	.338"
264NTA-10	5/8"	13/16"-18	1.58"	1.09"	.398"
