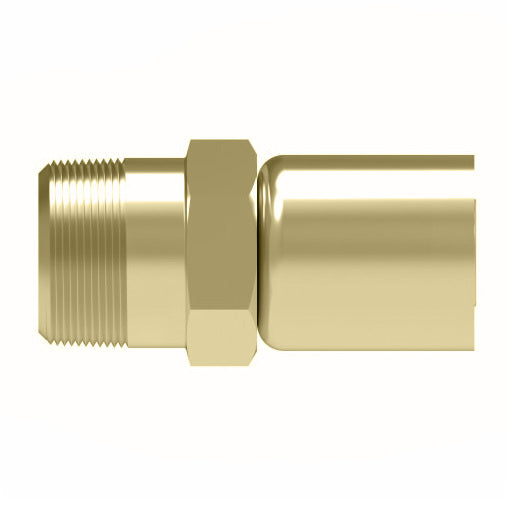

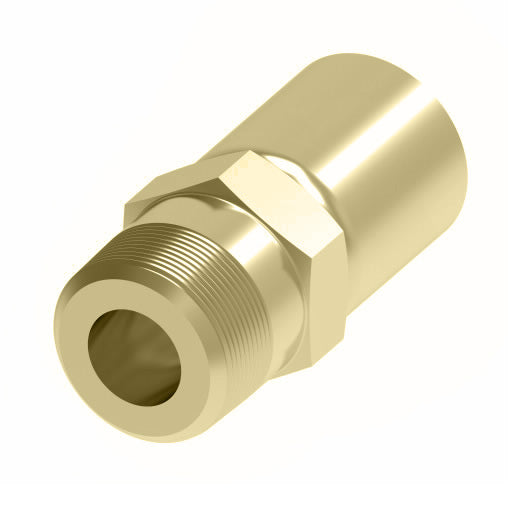

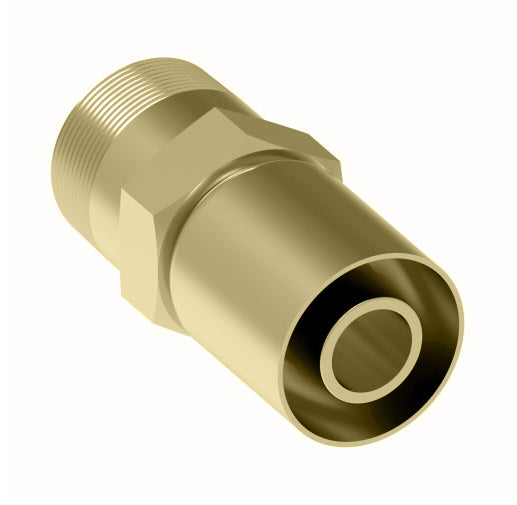

26504P-106 Weatherhead by Danfoss | 265 'P' Series | Male Pipe Rigid Crimp Fitting | -06 Male Pipe x -04 Hose Barb | Brass
26504P-106 Weatherhead by Danfoss | 265 'P' Series | Male Pipe Rigid Crimp Fitting | -06 Male Pipe x -04 Hose Barb | Brass
26504P-106 Weatherhead by Danfoss | 265 'P' Series | Male Pipe Rigid Crimp Fitting | -06 Male Pipe x -04 Hose Barb | Brass
26504P-106 Weatherhead by Danfoss | 265 'P' Series | Male Pipe Rigid Crimp Fitting | -06 Male Pipe x -04 Hose Barb | Brass

26504P-106 Weatherhead by Danfoss | 265 'P' Series | Male Pipe Rigid Crimp Fitting | -06 Male Pipe x -04 Hose Barb | Brass

$11.65 - $11.65
$11.65
$11.65 - $11.65
$11.65

Weatherhead by Danfoss
Coll-O-Crimp 265 'P' Series Crimp Fitting - Male Pipe Rigid - Straight
Specifications for Variant SKU: 26504P-106 Danfoss
Brand: Weatherhead
Series: 265 'P' Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPT, 1/4in Hose Barb
Material(s): Brass
Compatible with the following Series: H275 Series  |   H285 Series
Applications:
  • General purpose low-pressure air and water lines.
Advantages:
  • One piece construction.
  • Easy to assemble.
  • Corrosion resistant.
  • Note: Collar is not attached to insert.
Pressure:
  • Determined by maximum operating pressure for hose size.
Material:
  • CA360 Brass
Compatible Hose:
  • H275, H285
Brass
Part Number 		Hose
I.D.		 Pipe
Size		 Thread
Size		 A Hose
Cut-Off
Factor		 Hole
Diameter		 Hex
E
26504P-102 1/4" 1/8" 1/8-27 1.56" 0.56" 0.18" 7/16"
26504P-104 1/4" 1/4" 1/4-18 1.63" 0.63" 0.18" 9/16"
26504P-106 1/4" 3/8" 3/8-18 1.75" 0.75" 0.18" 11/16"
26506P-102 3/8" 1/8" 1/8-27 1.56" 0.56" 0.25" 7/16"
26506P-104 3/8" 1/4" 1/4-18 1.75" 0.75" 0.31" 9/16"
26506P-106 3/8" 3/8" 3/8-18 1.74" 0.75" 0.28" 11/16"
26508P-106 1/2" 3/8" 3/8-18 1.71" 0.75" 0.37" 11/16"
26508P-108 1/2" 1/2" 1/2-14 1.94" 1.00" 0.37" 7/8"
26512P-108 3/4" 1/2" 1/2-14 1.94" 1.00" 0.37" 1-1/8"
26512P-112 3/4" 3/4" 3/4-14 1.92" 1.00" 0.56" 1-1/8"

Note: Drawings may differ from actual parts.
