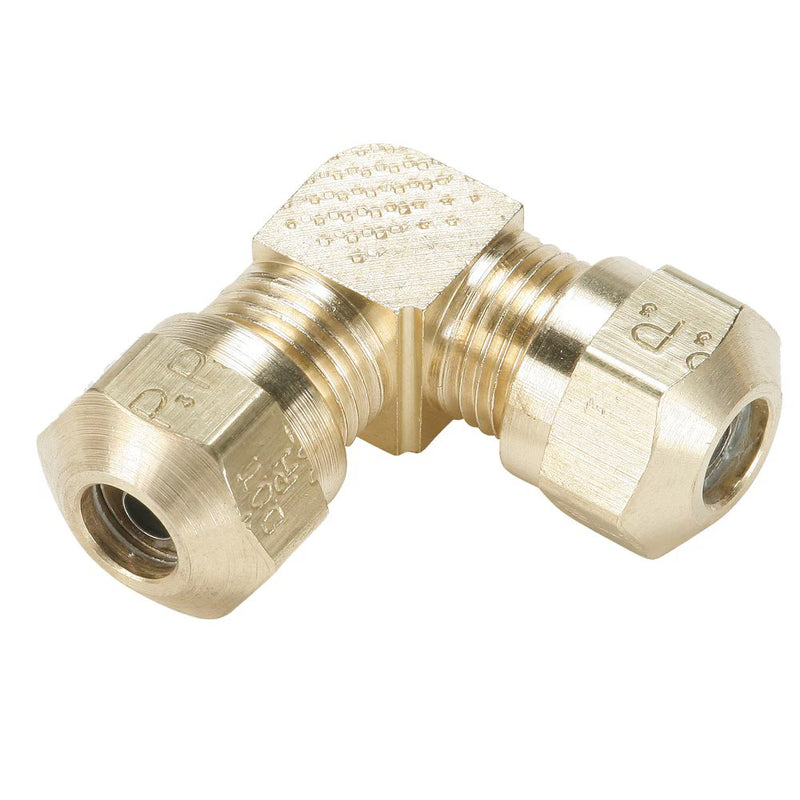

265NTA-8 by Parker | Air Brake–NTA® Fittings | Union | 1/2" Tube Size x 11/16" Thread | 90° Elbow | Brass | Pack of 10

Save $26.76

$294.37

$294.37 - $294.37

$294.37

$267.61

$267.61 - $267.61

$267.61

by Parker Hannifin
Air Brake–NTA® Fittings:Union Elbow 265NTA

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 265NTA-8 Parker \| 10 \|
Brand:	Air Brake–NTA®
Series:	265NTA Series
Shape (Orientation):	90° Elbow
Material(s):	Brass

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 & SAE J1131 Pre-applied Thread Sealant Nickel Plated Versions Available for Bio-diesel
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines Cab Controls
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Straight Thread	L	M	Flow Diameter (D)
265NTA-4	1/4"	7/16"-24	.95"	.62"	.137"
265NTA-6	3/8"	17/32"-24	1.25"	.79"	.217"
265NTA-8	1/2"	11/16"-20	1.45"	.93"	.338"
265NTA-10	5/8"	13/16"-18	1.58"	1.09"	.398"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
