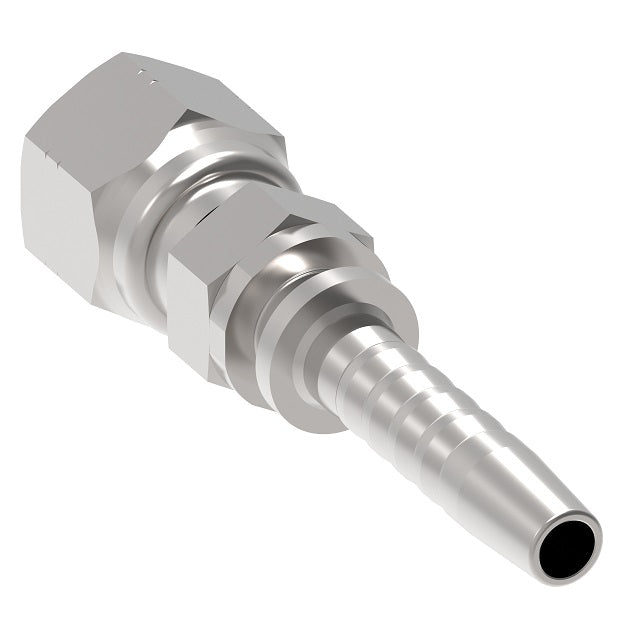

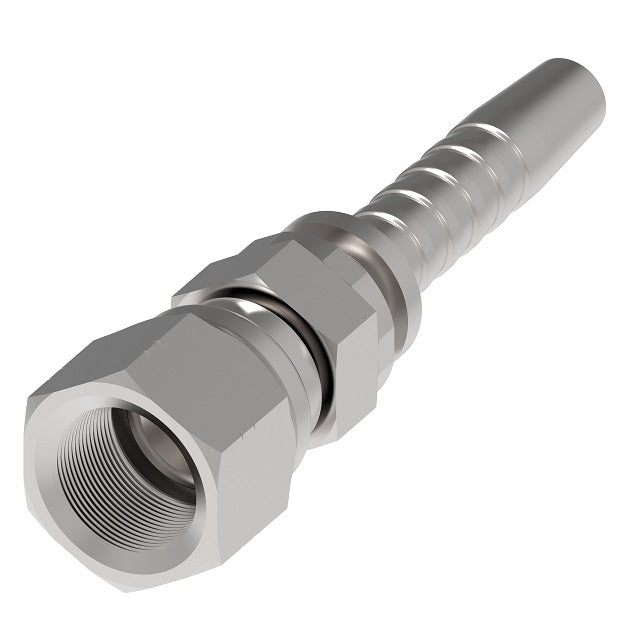

26711D-12-16ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -16 Hose Barb | Steel
26711D-12-16ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -16 Hose Barb | Steel
26711D-12-16ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -16 Hose Barb | Steel
26711D-12-16ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -16 Hose Barb | Steel

26711D-12-16ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -16 Hose Barb | Steel

$36.40 - $36.40
$36.40
$36.40 - $36.40
$36.40

Winner by Danfoss
Female 37° JIC Swivel 2-Piece Hose Crimp Fitting - Female 37° JIC Swivel x Hose Barb - Straight

Note: This part has a backup hex.
Specifications for Variant SKU: 26711D-12-16ZF Danfoss
Brand: Winner
Ends Configuration: 3/4in Female JIC, 1in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: Swivel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 1

 Hex 2
26711D-04-04ZF -04 7/16-20 6 -04 2.24" 1.14" 0.16" 14mm 14mm
26711D-06-04ZF -06 9/16-18 6 -04 2.32" 1.22" 0.15" 19mm 19mm
26711D-06-06ZF -06 9/16-18 10 -06 2.40" 1.22" 0.27" 19mm 19mm
26711D-08-06ZF -08 3/4-16 10 -06 2.60" 1.42" 0.27" 22mm 22mm
26711D-08-08ZF -08 3/4-16 12 -08 2.64" 1.40" 0.38" 22mm 22mm
26711D-10-08ZF -10 7/8-14 12 -08 2.78" 1.54" 0.39" 27mm 27mm
26711D-10-10ZF -10 7/8-14 16 -10 2.40" 1.06" 0.47" 27mm 27mm
26711D-12-10ZF -12 1-1/16-12 16 -10 3.13" 1.79" 0.47" 32mm 32mm
26711D-12-12ZF -12 1-1/16-12 20 -12 3.33" 1.81" 0.59" 32mm 32mm
26711D-12-16ZF -12 1-3/16-12 25 -16 3.74" 1.89" 0.82" 32mm 36mm
26711D-16-12ZF -16 1-5/16-12 20 -12 3.41" 1.89" 0.59" 41mm 41mm
26711D-16-16ZF -16 1-5/16-12 25 -16 3.81" 1.96" 0.82" 41mm 41mm
