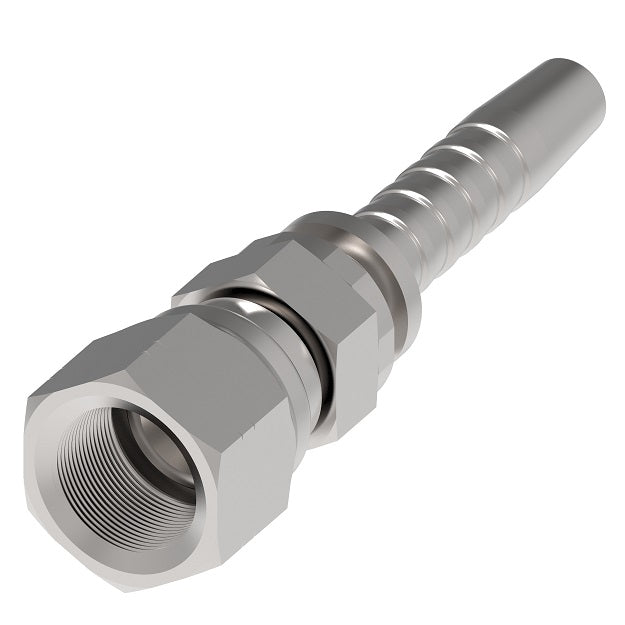

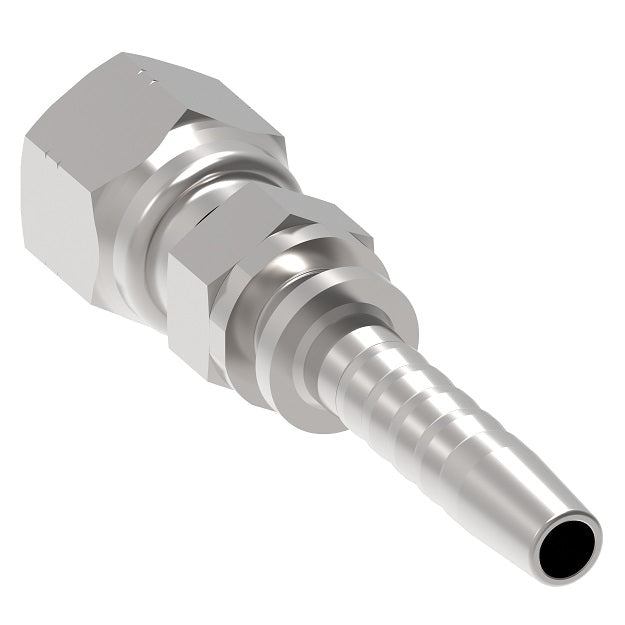

26711D-12-12ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel
26711D-12-12ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel
26711D-12-12ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel
26711D-12-12ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel

26711D-12-12ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel

$21.24 - $21.24
$21.24
$21.24 - $21.24
$21.24

Winner by Danfoss
Female 37° JIC Swivel 2-Piece Hose Crimp Fitting - Female 37° JIC Swivel x Hose Barb - Straight

Note: This part has a backup hex.
Specifications for Variant SKU: 26711D-12-12ZF Danfoss
Brand: Winner
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: Swivel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 1

 Hex 2
26711D-04-04ZF -04 7/16-20 6 -04 2.24" 1.14" 0.16" 14mm 14mm
26711D-06-04ZF -06 9/16-18 6 -04 2.32" 1.22" 0.15" 19mm 19mm
26711D-06-06ZF -06 9/16-18 10 -06 2.40" 1.22" 0.27" 19mm 19mm
26711D-08-06ZF -08 3/4-16 10 -06 2.60" 1.42" 0.27" 22mm 22mm
26711D-08-08ZF -08 3/4-16 12 -08 2.64" 1.40" 0.38" 22mm 22mm
26711D-10-08ZF -10 7/8-14 12 -08 2.78" 1.54" 0.39" 27mm 27mm
26711D-10-10ZF -10 7/8-14 16 -10 2.40" 1.06" 0.47" 27mm 27mm
26711D-12-10ZF -12 1-1/16-12 16 -10 3.13" 1.79" 0.47" 32mm 32mm
26711D-12-12ZF -12 1-1/16-12 20 -12 3.33" 1.81" 0.59" 32mm 32mm
26711D-12-16ZF -12 1-3/16-12 25 -16 3.74" 1.89" 0.82" 32mm 36mm
26711D-16-12ZF -16 1-5/16-12 20 -12 3.41" 1.89" 0.59" 41mm 41mm
26711D-16-16ZF -16 1-5/16-12 25 -16 3.81" 1.96" 0.82" 41mm 41mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
