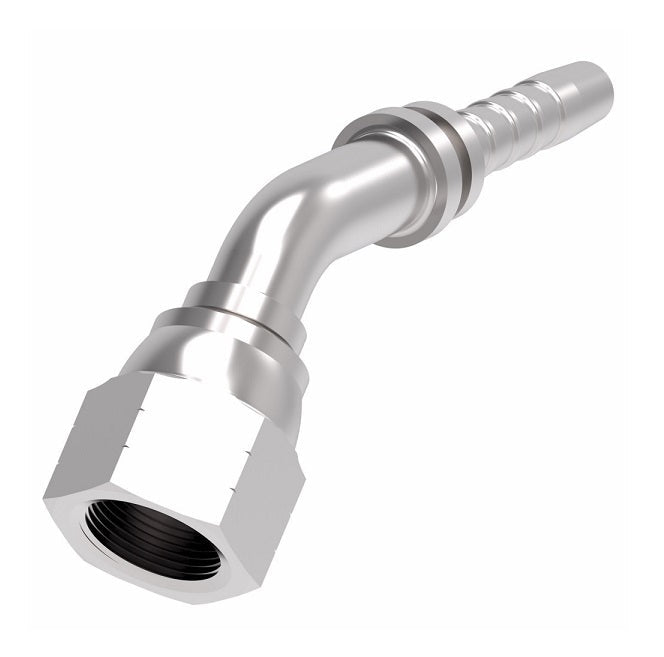

26741-04-04ZF Winner by Danfoss | Female JIC 37° Swivel 45° Elbow 2-Piece Hose Crimp Fitting | -04 Female JIC 37° Swivel x -04 Hose Barb | Steel

26741-04-04ZF Winner by Danfoss | Female JIC 37° Swivel 45° Elbow 2-Piece Hose Crimp Fitting | -04 Female JIC 37° Swivel x -04 Hose Barb | Steel

Name: 26741-04-04ZF Winner by Danfoss | Female JIC 37° Swivel 45° Elbow 2-Piece Hose Crimp Fitting | -04 Female JIC 37° Swivel x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 26741-04-04ZF Danfoss
Price: 13.24 USD
Availability: InStock

$13.24 - $13.24

$13.24

$13.24 - $13.24

$13.24

Winner by Danfoss
Female JIC 37° Swivel 2-Piece Hose Crimp Fitting - Female JIC 37° Swivel x Hose Barb - 45° Elbow

Specifications for Variant SKU: 26741-04-04ZF Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Female JIC, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	H	Hex 1
26741-04-04ZF	-04	7/16"-20	6	-04	2.48"	1.38"	0.16"	0.51"	14mm
26741-06-06ZF	-06	9/16"-18	10	-06	2.71"	1.53"	0.28"	0.58"	19mm
26741-08-08ZF	-08	3/4"-16	12	-08	3.02"	1.78"	0.39"	0.75"	22mm
26741-10-10ZF	-10	7/8"-14	16	-10	3.48"	2.14"	0.47"	0.87"	27mm
26741-12-12ZF	-12	1-1/16"-12	20	-12	3.85"	2.33"	0.59"	0.95"	32mm
26741-16-16ZF	-16	1-5/16"-12	25	-16	4.78"	2.93"	0.83"	1.13"	41mm

26741-04-04H10ZF (10mm Drop)	-04	7/16"-12	6	-04	2.32"	1.22"	0.15"	0.39"	14mm
26741-06-04H11ZF (11mm Drop)	-06	9/16"-18	6	-04	2.36"	1.26"	0.15"	0.43"	19mm
26741-06-06H11ZF (11mm Drop)	-06	6/16"18	10	-06	2.59"	1.41"	0.27"	0.43"	19mm
26741-08-06TZF (with Captive Nut)	-08	3/4"-16	10	-06	2.77"	1.59"	0.27"	0.59"	22mm
26741-08-08H15ZF (15mm Drop)	-08	3/4"-16	12	-08	3.11"	1.87"	0.39"	0.59"	22mm
26741-10-10H16ZF (16mm Drop)	-10	7/8"-14	16	-10	3.44"	2.10"	0.47"	0.63"	27mm
26741-12-12H21ZF (21mm Drop)	-12	1-1/16"-12	20	-12	3.76"	2.24"	0.59"	0.83"	32mm
26741-16-16H24ZF (24mm Drop)	-16	1-5/16"-12	25	-16	4.7"	2.85"	0.82"	0.94"	41mm
