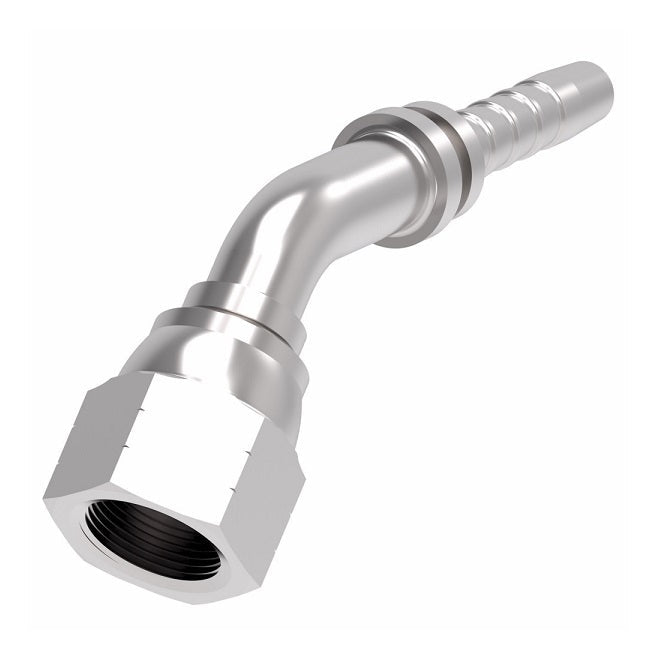

26741-12-12H21ZF Winner by Danfoss | Female JIC 37° Swivel 45° Elbow 2-Piece Hose Crimp Fitting (21mm Drop) | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel
26741-12-12H21ZF Winner by Danfoss | Female JIC 37° Swivel 45° Elbow 2-Piece Hose Crimp Fitting (21mm Drop) | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel
26741-12-12H21ZF Winner by Danfoss | Female JIC 37° Swivel 45° Elbow 2-Piece Hose Crimp Fitting (21mm Drop) | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel
26741-12-12H21ZF Winner by Danfoss | Female JIC 37° Swivel 45° Elbow 2-Piece Hose Crimp Fitting (21mm Drop) | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel

26741-12-12H21ZF Winner by Danfoss | Female JIC 37° Swivel 45° Elbow 2-Piece Hose Crimp Fitting (21mm Drop) | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel

$47.72 - $47.72
$47.72
$47.72 - $47.72
$47.72

Winner by Danfoss
Female JIC 37° Swivel 2-Piece Hose Crimp Fitting - Female JIC 37° Swivel x Hose Barb - 45° Elbow
Specifications for Variant SKU: 26741-12-12H21ZF Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash H Hex 1
26741-04-04ZF -04 7/16"-20 6 -04 2.48" 1.38" 0.16" 0.51" 14mm
26741-06-06ZF -06 9/16"-18 10 -06 2.71" 1.53" 0.28" 0.58" 19mm
26741-08-08ZF -08 3/4"-16 12 -08 3.02" 1.78" 0.39" 0.75" 22mm
26741-10-10ZF -10 7/8"-14 16 -10 3.48" 2.14" 0.47" 0.87" 27mm
26741-12-12ZF -12 1-1/16"-12 20 -12 3.85" 2.33" 0.59" 0.95" 32mm
26741-16-16ZF -16 1-5/16"-12 25 -16 4.78" 2.93" 0.83" 1.13" 41mm
26741-04-04H10ZF
(10mm Drop)		 -04 7/16"-12 6 -04 2.32" 1.22" 0.15" 0.39" 14mm
26741-06-04H11ZF
(11mm Drop)		 -06 9/16"-18 6 -04 2.36" 1.26" 0.15" 0.43" 19mm
26741-06-06H11ZF
(11mm Drop)		 -06 6/16"18 10 -06 2.59" 1.41" 0.27" 0.43" 19mm
26741-08-06TZF
(with Captive Nut)		 -08 3/4"-16 10 -06 2.77" 1.59" 0.27" 0.59" 22mm
26741-08-08H15ZF
(15mm Drop)		 -08 3/4"-16 12 -08 3.11" 1.87" 0.39" 0.59" 22mm
26741-10-10H16ZF
(16mm Drop)		 -10 7/8"-14 16 -10 3.44" 2.10" 0.47" 0.63" 27mm
26741-12-12H21ZF
(21mm Drop)		 -12 1-1/16"-12 20 -12 3.76" 2.24" 0.59" 0.83" 32mm
26741-16-16H24ZF
(24mm Drop)		 -16 1-5/16"-12 25 -16 4.7" 2.85" 0.82" 0.94" 41mm
