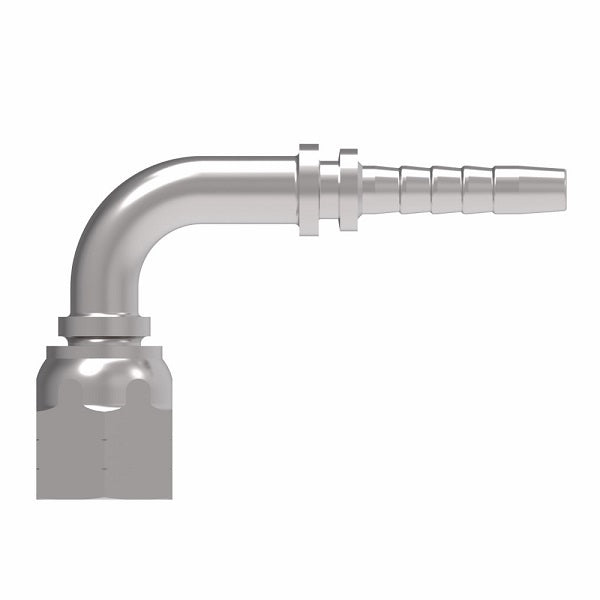

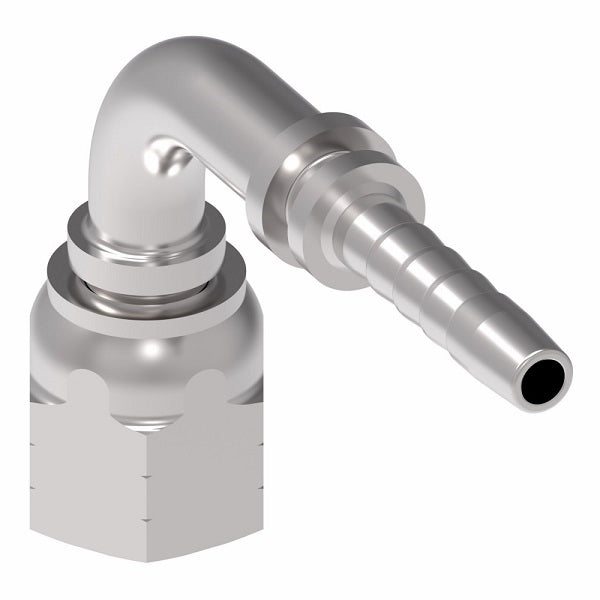

26791-06-04ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -06 Female JIC 37° Swivel x -04 Hose Barb | Steel
26791-06-04ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -06 Female JIC 37° Swivel x -04 Hose Barb | Steel
26791-06-04ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -06 Female JIC 37° Swivel x -04 Hose Barb | Steel
26791-06-04ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -06 Female JIC 37° Swivel x -04 Hose Barb | Steel

26791-06-04ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -06 Female JIC 37° Swivel x -04 Hose Barb | Steel

$19.79 - $19.79
$19.79
$19.79 - $19.79
$19.79

Winner by Danfoss
Female JIC 37° Swivel 2-Piece Hose Crimp Fitting - Female JIC 37° Swivel x Hose Barb - 90° Elbow
Specifications for Variant SKU: 26791-06-04ZF Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female JIC, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash H Hex 1
26791-04-04ZF -04 7/16"-20 6 -04 2.28" 1.18" 0.16" 1.04" 14mm
26791-06-04ZF -06 9/16"-18 6 -04 2.28" 1.18" 0.16" 1.06" 19mm
26791-06-06ZF -06 9/16"-18 10 -06 2.54" 1.36" 0.28" 1.24" 19mm
26791-08-08ZF -08 3/4"-16 12 -08 2.80" 1.56" 0.39" 1.57" 22mm
26791-10-08ZF -10 7/8"-14 12 -08 2.80" 1.56" 0.39" 1.65" 27mm
26791-10-10ZF -10 7/8"-14 16 -10 3.27" 1.93" 0.47" 1.87" 27mm
26791-12-12ZF -12 1.1/16"-12 20 -12 3.66" 2.15" 0.59" 2.11" 32mm
26791-16-16ZF -16 1.5/16"-12 25 -16 4.65" 2.80" 0.83" 2.60" 41mm
26791-04-04H21ZF
(21mm Drop)		 -04 7/16"-20 6 -04 2.18" 1.07" 0.15" 0.83" 14mm
26791-06-04H23ZF
(23mm Drop)		 -06 9/16"18 6 -04 2.18" 1.07" 0.15" 0.91" 19mm
26791-06-06H23ZF
(23mm Drop)		 -06 9/16"-18 10 -06 2.43" 1.25" 0.27" 0.91" 19mm
26791-06-06H54ZF
(54mm Drop)		 -06 9/16"-18 10 -06 2.54" 1.36" 0.27" 2.13" 19mm
26791-08-06H29ZF
(29mm Drop)		 -08 3/4"-16 10 -06 2.7" 1.52" 0.27" 1.14" 22mm
26791-08-08H29ZF
(29mm Drop)		 -08 3/4"-16 12 -08 3.09" 1.85" 0.39" 1.14" 22mm
26791-10-08H32ZF
(32mm Drop)		 -10 7/8"-14 12 -08 2.99" 1.75" 0.39" 1.29" 27mm
26791-10-10H32ZF
(32mm Drop)		 -10 7/8"-14 16 -10 3.29" 1.95" 0.47" 1.26" 27mm
26791-12-10H48ZF
(48mm Drop)		 -12 1-1/16"-12 16 -10 3.27" 1.93" 0.47" 1.89" 32mm
26791-12-10H96ZF
(96mm Drop)		 -12 1-1/16"-12 16 -10 3.27" 1.93" 0.47" 3.78" 32mm
26791-12-12H48ZF
(48mm Drop)		 -12 1-1/16"-12 20 -12 3.65" 2.14" 0.59" 1.89" 32mm
26791-12-12H96ZF
(96mm Drop)		 -12 1-1/16"-12 20 -12 3.66" 2.15" 0.59" 3.78" 32mm
26791-16-16H56ZF
(56mm Drop)		 -16 1-5/16"-12 25 -16 4.66" 2.81" 0.82" 2.2" 41mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
