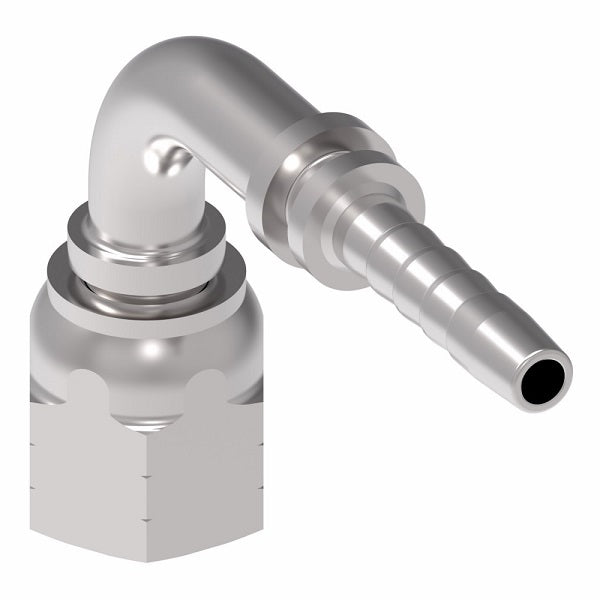

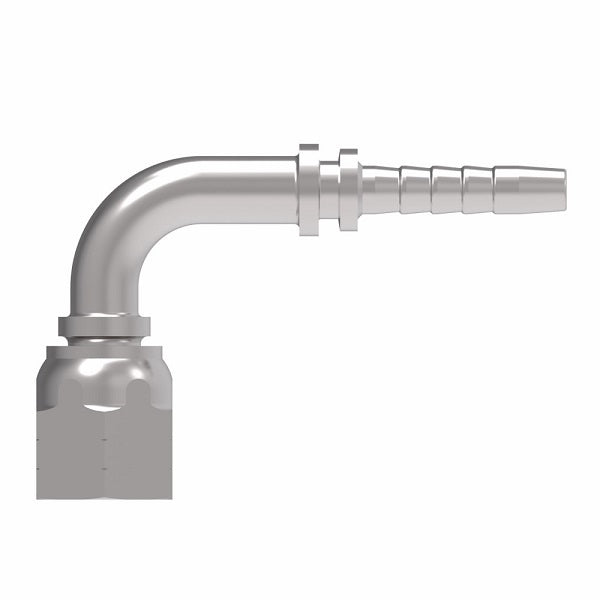

26791-10-10ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -10 Hose Barb | Steel
26791-10-10ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -10 Hose Barb | Steel
26791-10-10ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -10 Hose Barb | Steel
26791-10-10ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -10 Hose Barb | Steel

26791-10-10ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -10 Hose Barb | Steel

$33.16 - $33.16
$33.16
$33.16 - $33.16
$33.16

Winner by Danfoss
Female JIC 37° Swivel 2-Piece Hose Crimp Fitting - Female JIC 37° Swivel x Hose Barb - 90° Elbow
Specifications for Variant SKU: 26791-10-10ZF Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash H Hex 1
26791-04-04ZF -04 7/16"-20 6 -04 2.28" 1.18" 0.16" 1.04" 14mm
26791-06-04ZF -06 9/16"-18 6 -04 2.28" 1.18" 0.16" 1.06" 19mm
26791-06-06ZF -06 9/16"-18 10 -06 2.54" 1.36" 0.28" 1.24" 19mm
26791-08-08ZF -08 3/4"-16 12 -08 2.80" 1.56" 0.39" 1.57" 22mm
26791-10-08ZF -10 7/8"-14 12 -08 2.80" 1.56" 0.39" 1.65" 27mm
26791-10-10ZF -10 7/8"-14 16 -10 3.27" 1.93" 0.47" 1.87" 27mm
26791-12-12ZF -12 1.1/16"-12 20 -12 3.66" 2.15" 0.59" 2.11" 32mm
26791-16-16ZF -16 1.5/16"-12 25 -16 4.65" 2.80" 0.83" 2.60" 41mm
26791-04-04H21ZF
(21mm Drop)		 -04 7/16"-20 6 -04 2.18" 1.07" 0.15" 0.83" 14mm
26791-06-04H23ZF
(23mm Drop)		 -06 9/16"18 6 -04 2.18" 1.07" 0.15" 0.91" 19mm
26791-06-06H23ZF
(23mm Drop)		 -06 9/16"-18 10 -06 2.43" 1.25" 0.27" 0.91" 19mm
26791-06-06H54ZF
(54mm Drop)		 -06 9/16"-18 10 -06 2.54" 1.36" 0.27" 2.13" 19mm
26791-08-06H29ZF
(29mm Drop)		 -08 3/4"-16 10 -06 2.7" 1.52" 0.27" 1.14" 22mm
26791-08-08H29ZF
(29mm Drop)		 -08 3/4"-16 12 -08 3.09" 1.85" 0.39" 1.14" 22mm
26791-10-08H32ZF
(32mm Drop)		 -10 7/8"-14 12 -08 2.99" 1.75" 0.39" 1.29" 27mm
26791-10-10H32ZF
(32mm Drop)		 -10 7/8"-14 16 -10 3.29" 1.95" 0.47" 1.26" 27mm
26791-12-10H48ZF
(48mm Drop)		 -12 1-1/16"-12 16 -10 3.27" 1.93" 0.47" 1.89" 32mm
26791-12-10H96ZF
(96mm Drop)		 -12 1-1/16"-12 16 -10 3.27" 1.93" 0.47" 3.78" 32mm
26791-12-12H48ZF
(48mm Drop)		 -12 1-1/16"-12 20 -12 3.65" 2.14" 0.59" 1.89" 32mm
26791-12-12H96ZF
(96mm Drop)		 -12 1-1/16"-12 20 -12 3.66" 2.15" 0.59" 3.78" 32mm
26791-16-16H56ZF
(56mm Drop)		 -16 1-5/16"-12 25 -16 4.66" 2.81" 0.82" 2.2" 41mm
