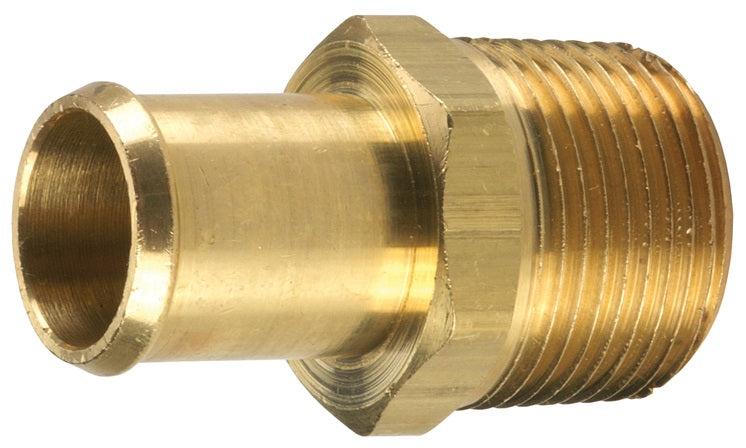

268B0502 by Dixon Valve | Male Beaded Hose Barb Insert | 1/8" Male NPTF x 5/16" Hose ID | Brass

268B0502 by Dixon Valve | Male Beaded Hose Barb Insert | 1/8" Male NPTF x 5/16" Hose ID | Brass

Save $0.15 Save $0.15
$1.72
$1.72 - $1.72
$1.72
$1.57
$1.57 - $1.57
$1.57

Dixon Valve
Male Hose Barb Insert | Male NPTF x Beaded Hose Barb
Specifications for Variant SKU: 268B0502 Dixon
Series: 268B Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 1/8in Male NPTF
Material(s): Brass
Brass
Part Number		 Male NPTF Hose I.D.
268B0402 1/8" 1/4"
268B0404 1/4" 1/4"
268B0502 1/8" 5/16"
268B0504 1/4" 5/16"
268B0602 1/8" 3/8"
268B0604 1/4" 3/8"
268B0606 3/8" 3/8"
268B0806 3/8" 1/2"
268B0808 1/2" 1/2"
268B1008 1/2" 5/8"
268B1208 1/2" 3/4"
268B1212 3/4" 3/4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
