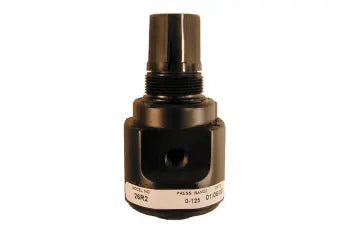

26R2 by Coilhose | 26 Series Regulator | 1/4" Pipe Size | Die Cast Aluminum

26R2 by Coilhose | 26 Series Regulator | 1/4" Pipe Size | Die Cast Aluminum

Save $29.61 Save $29.61
$74.03
$74.03 - $74.03
$74.03
$44.42
$44.42 - $44.42
$44.42
Coilhose Pneumatics - Filters, Regulators & Lubricators - 26 Series - Regulators
Specifications for Variant SKU: 26R2 Coilhose
Material(s): Plastic, Aluminum
Overview:
  • The 26 Series Regulators offer a balance of compact size and optimum flow. Utilizing a 3/8" die cast aluminum body, this series is perfect for applications where performance, small size and low cost are important. Available in 1/4" and 3/8" port sizes.
Features:
  • Balanced poppet valve design assures superior performance.
  • 0-125 PSI, 0-60 PSI, 0-25 PSI pressure ranges available.
  • Self-relieving feature prevents excessive pressure build-up.
  • Locking adjustment knob.
  • Panel mount and gauge options available.
  • Gauge ports can be used as secondary outlet ports.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Maximum Supply Pressure: 250 PSI Maximum Operating Temp: 250° F
Materials: Adjusting Knob: High Impact Plastic
Body: Zinc Die Cast		 Height: 4"
Maximum Diameter: 2" Bowl Capacity: 1/2 lb.
Regulator Pressure Ranges: 0-125 - Standard
0-60 - Optional
0-25 - Optional

Supply 100 PSI
Regulated Pressure		 Pressure Drop
5 10 15
1/4" at 25 PSI 7 SCFM 25 SCFM 40 SCFM
3/8" at 25 PSI 7 SCFM 25 SCFM 40 SCFM
1/4" at 50 PSI 7 SCFM 15 SCFM 50 SCFM
3/8" at 50 PSI 7 SCFM 15 SCFM 80 SCFM
1/4" at 75 PSI 7 SCFM 20 SCFM 60 SCFM
3/8" at 75 PSI 7 SCFM 20 SCFM 80 SCFM

Model Pipe Size Gauge Panel Mount Max Pressure Pressure Range
26R2 1/4" No No 250 PSI 0-125 PSI
26R2-L 1/4" No No 250 PSI 0-60 PSI
26R2-JP 1/4" No Yes 250 PSI 0-25 PSI
26R2-J 1/4" No No 250 PSI 0-25 PSI
26R2-GP 1/4" Yes Yes 250 PSI 0-125 PSI
26R2-GLP 1/4" Yes Yes 250 PSI 0-60 PSI
26R2-GL 1/4" Yes No 250 PSI 0-60 PSI
26R2-GJ 1/4" Yes No 250 PSI 0-25 PSI
26R2-G 1/4" Yes No 250 PSI 0-125 PSI
26R2-CS* 1/4" No No 250 PSI 0-125 PSI
26R2-P 1/4" No Yes 250 PSI 0-125 PSI

26R3 3/8" No No 250 PSI 0-125 PSI
26R3-L 3/8" No No 250 PSI 0-60 PSI
26R3-J 3/8" No No 250 PSI 0-25 PSI
26R3-GP 3/8" Yes Yes 250 PSI 0-125 PSI
26R3-GL 3/8" Yes No 250 PSI 0-60 PSI
26R3-GJ 3/8" Yes No 250 PSI 0-25 PSI
26R3-G 3/8" Yes No 250 PSI 0-125 PSI
26R3-CS* 3/8" No No 250 PSI 0-125 PSI
26R3-P 3/8" No Yes 250 PSI 0-125 PSI
* Clamshell Packaging.
