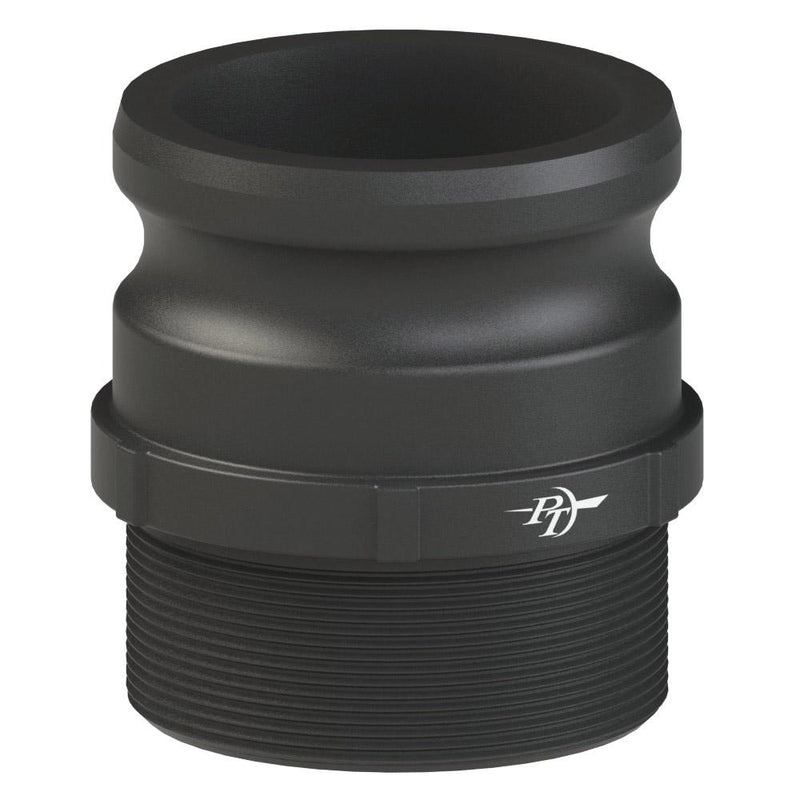

2700630 (30F) by PT-Coupling | Cam & Groove Adapter | Type F | 3" Adapter x 3" Male NPT | Polypropylene

2700630 (30F) by PT-Coupling | Cam & Groove Adapter | Type F | 3" Adapter x 3" Male NPT | Polypropylene

Save $9.57 Save $9.57
$25.78
$25.78 - $25.78
$25.78
$16.21
$16.21 - $16.21
$16.21

PT Coupling
Cam and Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Polypropylene

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 2700630 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 3in Male Cam & Groove, 3in Male NPT
Material(s): Polypropylene
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Glass-fiber reinforced for strength. Good abrasion and corrosion resistance. Good chemical resistance.
  • Color: Black
  • Use with water and coolants
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Male NPT
Thread		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max. Across
Corners
(F)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
07F 2700607 3/4" 3/4" 2.47" 1.67" 0.75" 1.42" - 0.97" 100 PSI
10F 2700610 1" 1" 2.89" 1.99" 0.85" 1.75" 0.34" 1.19" 100 PSI
12F 2700612 1-1/4" 1-1/4" 3.23" 2.23" 1.04" 2.16" 0.34" 1.44" 100 PSI
15F 2700615 1-1/2" 1-1/2" 3.29" 2.31" 1.34" 2.44" 0.30" 1.48" 100 PSI
20F 2700620 2" 2" 3.57" 2.57" 1.72" 2.84" 0.28" 1.75" 100 PSI
30F 2700630 3" 3" 4.37" 2.87" 2.80" 4.07" 0.44" 1.84" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
