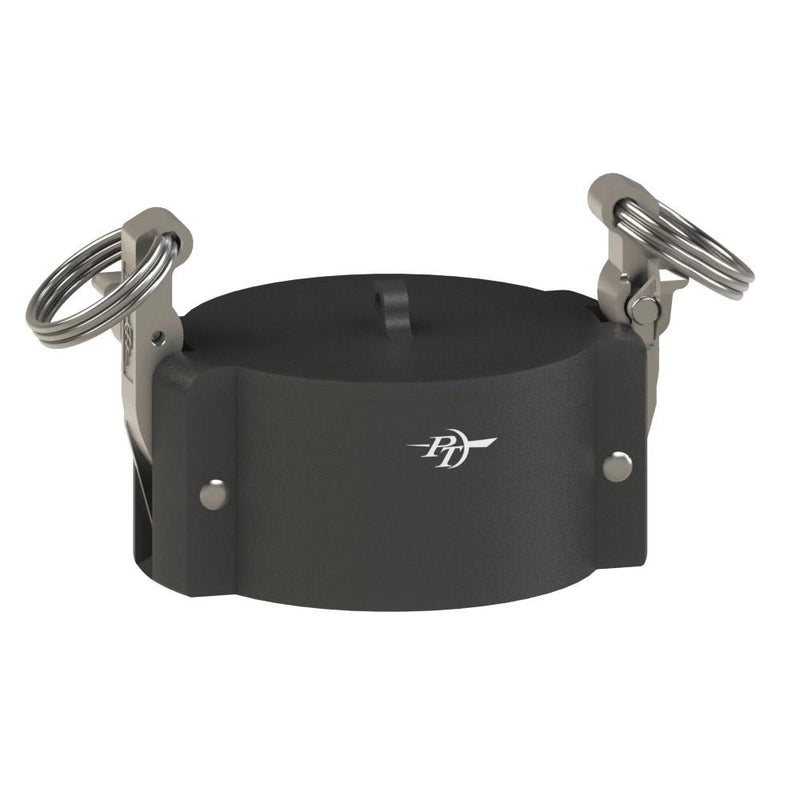

2701120L2 (20V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 2" Coupler | Polypropylene

2701120L2 (20V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 2" Coupler | Polypropylene

Save $3.64 Save $3.64
$32.75
$32.75 - $32.75
$32.75
$29.11
$29.11 - $29.11
$29.11

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | Polypropylene

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 2701120L2 PT-Coupling
Series: STA-LOK II
Cam Type: Type DC
Ends Configuration: 2in Female Cam & Groove
Material(s): Polypropylene
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • Glass-fiber reinforced for strength. Good abrasion and corrosion resistance. Good chemical resistance.
  • Color: Black
  • Use with water and coolants.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
10V SLII 2701110L2 1" 5.10" 2.44" 1.60" 0.62" 100 PSI
12V SLII 2701112L2 1-1/4" 6.86" 3.26" 1.89" 0.60" 100 PSI
15V SLII 2701115L2 1-1/2" 7.16" 3.56" 1.96" 0.86" 100 PSI
20V SLII 2701120L2 2" 7.54" 3.94" 2.25" 0.76" 100 PSI
30V SLII 2701130L2 3" 9.56" 5.46" 2.27" 1.03" 50 PSI
40V SLII 2701140L2 4" 10.66" 6.56" 2.34" 0.99" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
