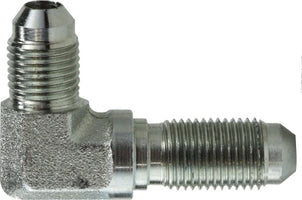

270120 (2701-20) Midland Hydraulic JIC Bulkhead Union 90° Elbow - 1-5/8-12 Male JIC 37° Flare x 1-5/8-12 Male JIC 37° Flare - Steel

270120 by Midland | Hydraulic JIC Bulkhead Union | 1-5/8-12 Male JIC 37° Flare x 1-5/8-12 Male JIC 37° Flare | 90° Elbow | Steel

Save $6.23 Save $6.23
$15.57
$15.57 - $15.57
$15.57
$9.34
$9.34 - $9.34
$9.34

Midland Industries
Hydraulic Adapters: JIC Bulkhead Union 90° Elbow - Steel

Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.

Inventory @ Manufacturers Warehouse: 507 Units
Specifications for Variant SKU: 270120 Midland
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Male JIC, 1-1/4in Male JIC, Some Ends Match
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards, Applicable Military Specifications
Specifications:
  • SAE 070701
  • MS 51507
Technical Info:
Crossover Series:
2701 2043R WETX 1262 C5525
Part Number Male JIC 37° Flare
(1)		 Male JIC 37° Flare Bulkhead
(2)		 Male JIC 37° Flare Threads Lock Nut Part Number
(Not Included - Must be Purchased Separately)
2701-03-03 3/16" 3/16" 3/8-24 -
27014
(2701-4) 		1/4" 1/4" 7/16-20 03064
(0306-4)
27015
(2701-5) 		5/16" 5/16" 1/2-20 03065
(0306-5)
27016
(2701-6) 		3/8" 3/8" 9/16-18 03066
(0306-6)
27018
(2701-8) 		1/2" 1/2" 3/4-16 03068
(0306-8)
270110
(2701-10) 		5/8" 5/8" 7/8-14 030610
(0306-10)
270112
(2701-12) 		3/4" 3/4" 1-1/16-12 030612
(0306-12)
270114 7/8" 7/8" 1-13/16-12 -
270116
(2701-16) 		1" 1" 1-5/16-12 030616
(0306-16)
270120
(2701-20) 		1-1/4" 1-1/4" 1-5/8-12 030620
(0306-20)
270124 1-1/2" 1-1/2" 1-7/8-12 -
2701-32-32 2" 2" 2-1/2-12 -
