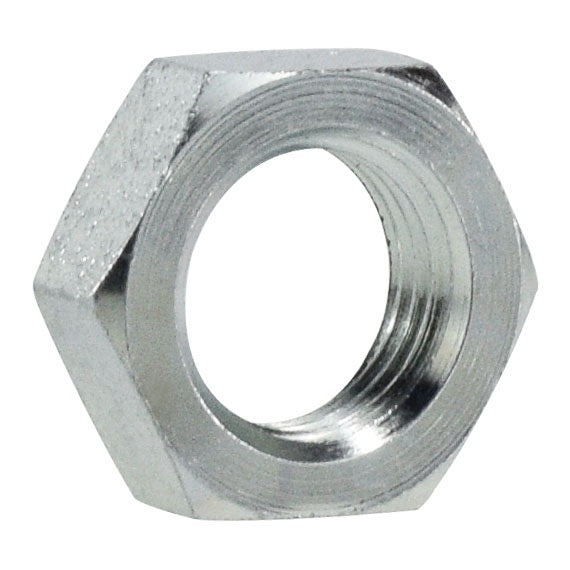

03065 (0306-5) by Midland | Hydraulic Bulkhead Fitting | Lock Nut | 1/2-20 JIC Thread Size | Steel

03065 (0306-5) by Midland | Hydraulic Bulkhead Fitting | Lock Nut | 1/2-20 JIC Thread Size | Steel

Save $0.10 Save $0.10
$0.62
$0.62 - $0.62
$0.62
$0.52
$0.52 - $0.52
$0.52

Midland Industries
Hydraulic Adapters: Bulkhead Locknut - Steel

Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.

Inventory @ Manufacturers Warehouse: 518 Units
Specifications for Variant SKU: 03065 Midland
Material(s): Steel
Applicable Specs & Approvals: SAE, MS
Specifications:
  • SAE 070118
  • MS 51860
Technical Info:
Crossover Series:
1306 894 210212 WLN 1332 C5624
Part Number Tube Size JIC Thread Size
03062
(0306-2) 		1/8" 5/16-24
0306-03 3/16" 3/8-24
03064
(0306-4) 		1/4" 7/16-20
03065
(0306-5) 		5/16" 1/2-20
03066
(0306-6) 		3/8" 9/16-18
03068
(0306-8) 		1/2" 3/4-16
030610
(0306-10) 		5/8" 7/8-14
030612
(0306-12) 		3/4" 1-1/16-12
030614
(0306-14) 		7/8" 1-3/16-12
030616
(0306-16) 		1" 1-5/16-12
030620
(0306-20) 		1-1/4" 1-5/8-12
30624 1-1/2" 1-7/8-12
30632 2" 2-1/2-12
