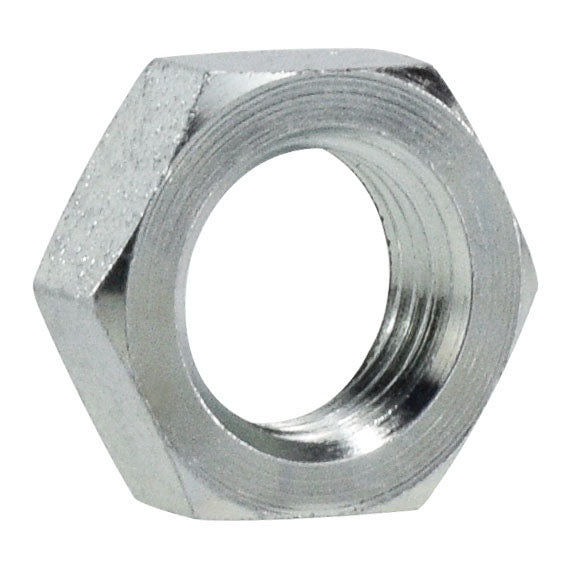

0306-03 by Midland | Hydraulic Bulkhead Fitting | Lock Nut | 3/8-24 JIC Thread Size | Steel

Name: 0306-03 by Midland | Hydraulic Bulkhead Fitting | Lock Nut | 3/8-24 JIC Thread Size | Steel
Brand: Midland Industries
SKU: 0306-03 Midland
Price: 0.42 USD
Availability: InStock

Save $0.05

$0.47

$0.47 - $0.47

$0.47

$0.42

$0.42 - $0.42

$0.42

Midland Industries
Hydraulic Adapters: Bulkhead Locknut - Steel

Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.

Inventory @ Manufacturers Warehouse: 125 Units

Quantity

Specifications for Variant SKU: 0306-03 Midland
Material(s):	Steel

Specifications:
SAE 070118 MS 51860
Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
1306	894	210212	WLN	1332	C5624

Part Number	Tube Size	JIC Thread Size
03062 (0306-2)	1/8"	5/16-24
0306-03	3/16"	3/8-24
03064 (0306-4)	1/4"	7/16-20
03065 (0306-5)	5/16"	1/2-20
03066 (0306-6)	3/8"	9/16-18
03068 (0306-8)	1/2"	3/4-16
030610 (0306-10)	5/8"	7/8-14
030612 (0306-12)	3/4"	1-1/16-12
030614 (0306-14)	7/8"	1-3/16-12
030616 (0306-16)	1"	1-5/16-12
030620 (0306-20)	1-1/4"	1-5/8-12
30624	1-1/2"	1-7/8-12
30632	2"	2-1/2-12
