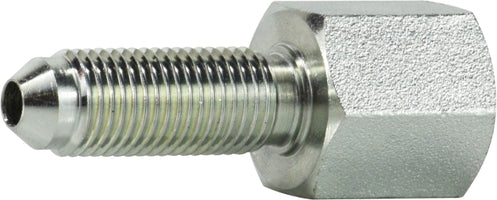

27051616 (2705-16-16) Midland Hydraulic JIC to Female Bulkhead - 1-5/16-12 Male JIC 37° Flare x 1" Female Pipe - Steel

27051616 by Midland | Hydraulic JIC to Female Bulkhead | 1-5/16-12 Male JIC 37° Flare x 1" Female Pipe | Steel

Save $22.75 Save $22.75
$56.88
$56.88 - $56.88
$56.88
$34.13
$34.13 - $34.13
$34.13

Midland Industries
Hydraulic Adapters: JIC to Female Bulkhead - Steel

Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.

Inventory @ Manufacturers Warehouse: 43 Units
Specifications for Variant SKU: 27051616 Midland
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, 1in Female NPT
Material(s): Steel
Technical Info:
Crossover Series:
2705 2239 WGTX C5275
Part Number Male JIC 37° Flare
Bulkhead
(1)		 Male JIC 37° Flare
Thread		 Female Pipe
(2)		 Lock Nut Part Number
(Not Included - Must be Purchased Separately)
270544
(2705-4-4) 		1/4" 7/16-20 1/4" 03064
(0306-4)
270552 5/16" 1/2-20 1/8" -
270564 3/8" 9/16-18 1/4" -
270566
(2705-6-6) 		3/8" 9/16-18 3/8" 03066
(0306-6)
270568 3/8" 9/16-18 1/2" -
270588
(2705-8-8) 		1/2" 3/4-16 1/2" 03068
(0306-8)
2705108 5/8" 7/8-14 1/2" -
27051212
(2705-12-12) 		3/4" 1-1/16-12 3/4" 030612
(0306-12)
27051616
(2705-16-16) 		3/4" 1-5/16-12 1" 030616
(0306-16)
27052020 1-1/4" 1-5/8-12 1-1/4" 030620
(0306-20)
27052424 1-1/2" 1-7/8-12 1-1/2" -
27053232 2" 2-1/2-12 2" -
