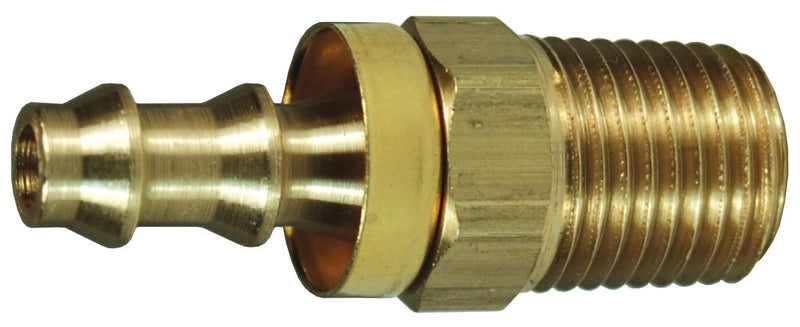

2720804CBC by Dixon Valve | Push-On Hose Barb Fitting | with Brass Cap | 1/4" Male NPTF x 1/2" Hose ID | Brass

2720804CBC by Dixon Valve | Push-On Hose Barb Fitting | with Brass Cap | 1/4" Male NPTF x 1/2" Hose ID | Brass

Save $2.34 Save $2.34
$5.85
$5.85 - $5.85
$5.85
$3.51
$3.51 - $3.51
$3.51

Dixon Valve
Push-on Hose Barb Fitting | with Brass Cap | Male NPT x Hose Barb | Brass

Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.

No hose clamps or ferrules are needed.
Specifications for Variant SKU: 2720804CBC Dixon
Series: 272 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/2in Push-On Hose Barb
Material(s): Brass
Construction:
  • Dryseal
Material:
  • Fitting: Brass
  • Cap: Brass
Specifications:
  • Temperature Range: -40°F to 150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Brass
Part Number		 Hose I.D. Male NPTF
2720402CBC 1/4" 1/8"
2720404CBC 1/4" 1/4"
2720406CBC 1/4" 3/8"
2720602CBC 3/8" 1/8"
2720604CBC 3/8" 1/4"
2720606CBC 3/8" 3/8"
2720608CBC 3/8" 1/2"
2720612CBC 3/8" 3/4"
2720804CBC 1/2" 1/4"
2720806CBC 1/2" 3/8"
2720808CBC 1/2" 1/2"
2720812CBC 1/2" 3/4"
2721006CBC 5/8" 3/8"
2721008CBC 5/8" 1/2"
2721012CBC 5/8" 3/4"
2721208CBC 3/4" 1/2"
2721212CBC 3/4" 3/4"
