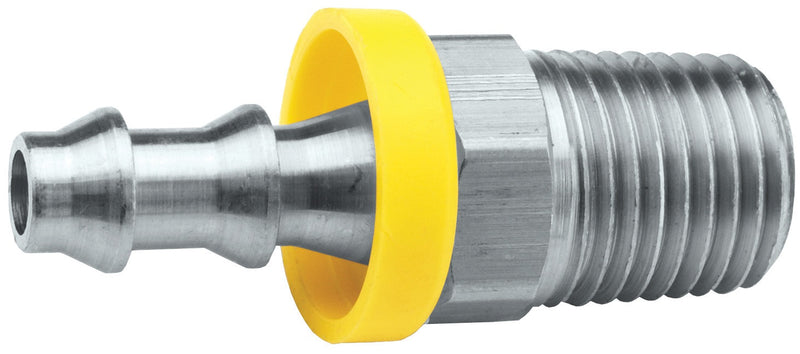

2720806SS by Dixon Valve | Push-On Hose Barb Fitting | 3/8" Male NPTF x 1/2" Hose ID | 303 Stainless Steel

2720806SS by Dixon Valve | Push-On Hose Barb Fitting | 3/8" Male NPTF x 1/2" Hose ID | 303 Stainless Steel

Save $13.95 Save $13.95
$34.88
$34.88 - $34.88
$34.88
$20.93
$20.93 - $20.93
$20.93

Dixon Valve
Push-on Hose Barb Fitting | Male NPT x Hose Barb | Brass

Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.

No hose clamps or ferrules are needed.
Specifications for Variant SKU: 2720806SS Dixon
Series: 272 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-On Hose Barb, 3/8in Male NPTF
Material(s): 303 Stainless Steel
Construction:
  • Dryseal
Material:
  • Fitting: 303 Stainless Steel
  • Cap: Plastic
Specifications:
  • Temperature Range: -40°F to 150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Brass
Part Number		 Previous
Part Number		 Hose I.D. Male NPTF
2720402SS RPN21 1/4" 1/8"
2720404SS RPN22 1/4" 1/4"
2720604SS RPN32 3/8" 1/4"
2720606SS RPN33 3/8" 3/8"
2720804SS RPN42 1/2" 1/4"
2720806SS RPN43 1/2" 3/8"
2720808SS RPN44 1/2" 1/2"
2721208SS RPN64 3/4" 1/2"
2721212SS RPN66 3/4" 3/4"
2721616SS RPN88 1" 1"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
