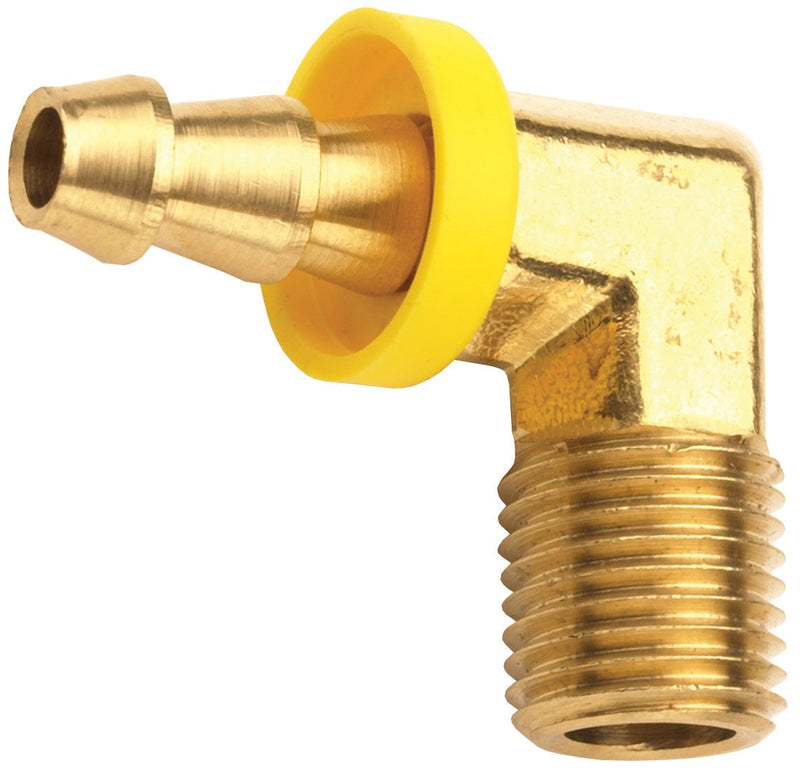

2730606C by Dixon Valve | Push-On Hose Barb Fitting | 90° Elbow | 3/8" Male NPTF x 3/8" Hose ID | Brass

2730606C by Dixon Valve | Push-On Hose Barb Fitting | 90° Elbow | 3/8" Male NPTF x 3/8" Hose ID | Brass

Save $0.13 Save $0.13
$4.33
$4.33 - $4.33
$4.33
$4.20
$4.20 - $4.20
$4.20

Dixon Valve
Push-on Hose Barb Fitting | 90° Elbow | Male NPTF x Hose Barb | Brass

Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.

No hose clamps or ferrules are needed.
Specifications for Variant SKU: 2730606C Dixon
Series: 273 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Push-On Hose Barb, 3/8in Male NPTF
Material(s): Brass
Construction:
  • Forged.
Material:
  • Fitting: Brass
  • Cap: Plastic
Specifications:
  • Temperature Range: -40°F to 150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
  • Swivel is for assembly convenience only, not for live swivel applications.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Brass
Part Number		 Previous
Part Number		 Hose I.D. Male NPTF
2730402C 273-0402 1/4" 1/8"-27
2730404C 273-0404 1/4" 1/4"-18
2730602C 273-0602 3/8" 1/8"-27
2730604C 273-0604 3/8" 1/4"-18
2730606C 273-0606 3/8" 3/8"-18
2730806C 273-0806 1/2" 3/8"-18
2730808C 273-0806 1/2" 1/2"-14
2731208C 273-1208 3/4" 1/2"-14
2731212C 273-1212 3/4" 3/4"-14
