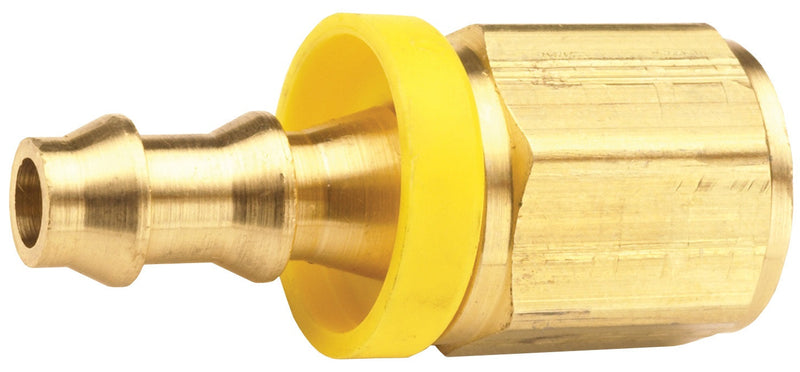

2740806C by Dixon Valve | Push-On Hose Barb Fitting | 3/8" Female NPTF x 1/2" Hose ID | Brass

2740806C by Dixon Valve | Push-On Hose Barb Fitting | 3/8" Female NPTF x 1/2" Hose ID | Brass

Save $2.13 Save $2.13
$5.32
$5.32 - $5.32
$5.32
$3.19
$3.19 - $3.19
$3.19

Dixon Valve
Push-on Hose Barb Fitting | Female NPTF x Hose Barb | Brass

Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.

No hose clamps or ferrules are needed.
Specifications for Variant SKU: 2740806C Dixon
Series: 274 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-On Hose Barb, 3/8in Female NPTF
Material(s): Brass
Construction:
  • Dryseal.
Material:
  • Fitting: Brass
  • Cap: Plastic. (Part Numbers Ending in CBC are Brass Caps)
Specifications:
  • Temperature Range: -40°F to 150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
  • Swivel is for assembly convenience only, not for live swivel applications.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Brass
Part Number		 Previous
Part Number		 Hose I.D. Female NPTF
2740402C BPF21 1/4" 1/8"
2740402CBC* - 1/4" 1/8"
2740404C BPF22 1/4" 1/4"
2740404CBC* - 1/4" 1/4"
2740406C BPF23 1/4" 3/8"
2740406CBC* - 1/4" 3/8"
2740502C BPF251 5/16" 1/8"
2740504C BPF252 5/16" 1/4"
2740602C BPF31 3/8" 1/8"
2740602CBC* - 3/8" 1/8"
2740604C BPF32 3/8" 1/4"
2740604CBC* - 3/8" 1/4"
2740606C BPF33 3/8" 3/8"
2740606CBC* - 3/8" 3/8"
2740608C BPF34 3/8" 1/2"
2740612C BPF36 3/8" 3/4"
2740804C BPF42 1/2" 1/4"
2740806C BPF43 1/2" 3/8"
2740806CBC* - 1/2" 3/8"
2740808C BPF44 1/2" 1/2"
2740808CBC* - 1/2" 1/2"
2740812C BPF46 1/2" 3/4"
2740812CBC* - 1/2" 3/4"
2741006C BPF53 5/8" 3/8"
2741008C BPF54 5/8" 1/2"
2741008CBC* - 5/8" 1/2"
2741012C BPF56 5/8" 3/4"
2741208C BPF64 3/4" 1/2"
2741212C BPF66 3/4" 3/4"
2741212CBC* - 3/4" 3/4"
2741612C BPF86 1" 3/4"
2741616C BPF88 1" 1"

* Brass cap on CBC parts.
