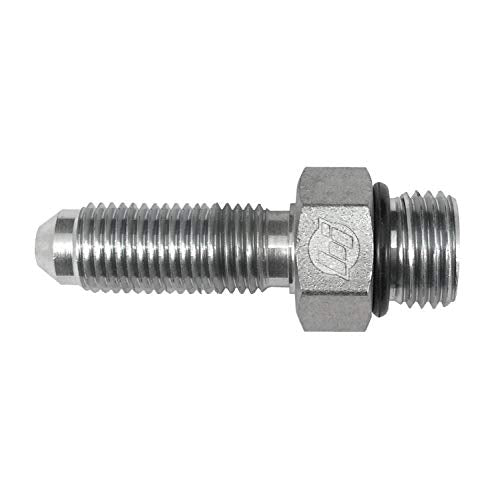

2764-06-06-O by Brennan Inc. | -06 Male O-Ring Boss x -06 Male JIC Bulkhead | Straight | Steel

2764-06-06-O by Brennan Inc. | -06 Male O-Ring Boss x -06 Male JIC Bulkhead | Straight | Steel

$4.65 - $4.65
$4.65
$5.91
$5.91 - $5.91
$5.91

Brennan Inc.
Tube Fittings & Adapters: 2764-O - Male O-Ring Boss x Male JIC Bulkhead Straight
Specifications for Variant SKU: 2764-06-06-O Brennan
Shape (Orientation): Straight
Ends Configuration: 3/8in Male O-Ring Boss, 3/8in Male JIC
Material(s): Steel

Part Number Material B1 TUBE O.D. B2 TUBE O.D. B1 SAE ORB B2
SAE 37°		 B1 Drill B2 Drill L Length C Hex
2764-04-04-O Steel 1/4" 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 1.950" 0.688"
2764-06-06-O Steel 3/8" 3/8" 9/16-18" 9/16-18" 0.297" 0.297" 2.020" 0.813"
2764-08-08-O Steel - - - - - - - -

2764-12-12-O-SS Stainless Steel 3/4" 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 2.815" 1.375"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
