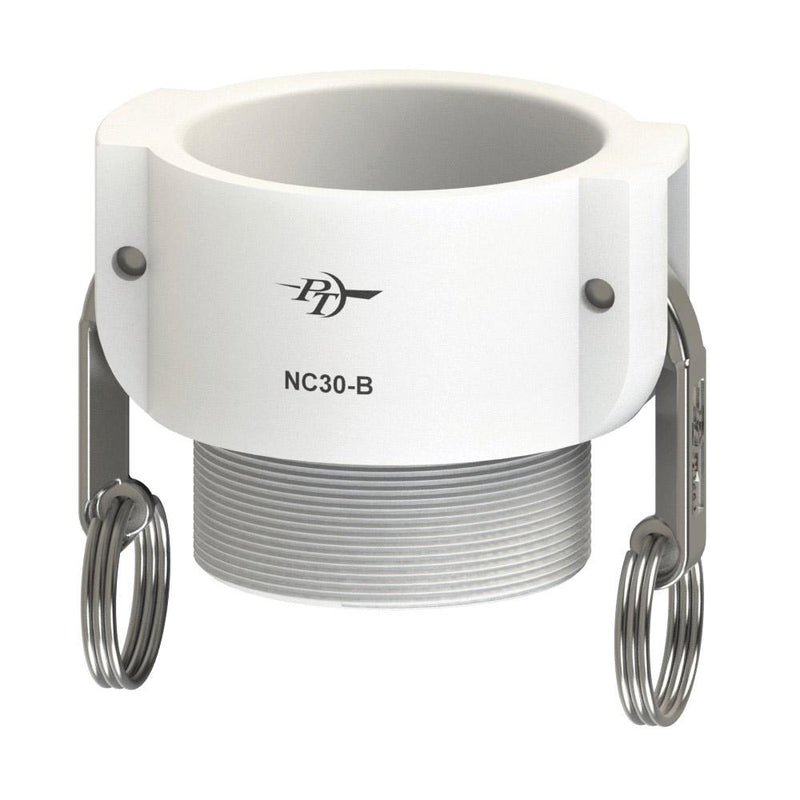

2770230 (30B) by PT-Coupling | Cam & Groove Adapter | Type B | 3" Coupler x 3" Male NPT | Food Grade Polypropylene | Buna-N Seal

Save $14.08

$37.95

$37.95 - $37.95

$37.95

$23.87

$23.87 - $23.87

$23.87

PT Coupling
Cam and Groove (Camlock) Adapter | Type B | Coupler x Male NPT Thread | Food Grade Polypropylene

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 2770230 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	3in Female Cam & Groove, 3in Male NPT
Seal Material(s):	Buna-N/Nitrile

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
Fair abrasion resistance. Color: White Use with water and other food grade applications Made in the USA


Part Name	Item #	Coupler Size	Thread (Male NPT)	O.D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*	Weight
07B	2770207	3/4"	3/4"	4.51"	2.11"	2.10"	1.25"	0.78"	0.97"	100 PSI	0.202 lbs.
10B	2770210	1"	1"	5.10"	2.44"	2.50"	1.56"	0.97"	1.19"	100 PSI	0.31 lbs.
15B	2770215	1-1/2"	1-1/2"	7.16"	3.56"	2.93"	1.88"	1.50"	1.48"	100 PSI	2.944 lbs.
20B	2770220	2"	2"	7.54"	3.94"	3.20"	2.15"	1.88"	1.75"	100 PSI	0.703 lbs.
30B	2770230	3"	3"	9.56"	5.46"	3.82"	2.27"	2.88"	1.84"	50 PSI	1.207 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
