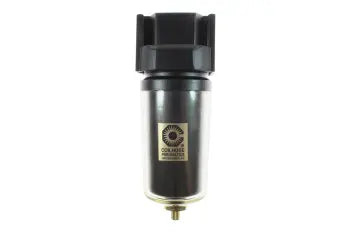

27C3-S by Coilhose | 27 Modular Series Coalescing Filter | Metal Bowl with Sight Glass | 3/8" Pipe size | Die Cast Aluminum

27C3-S by Coilhose | 27 Modular Series Coalescing Filter | Metal Bowl with Sight Glass | 3/8" Pipe size | Die Cast Aluminum

Save $106.52 Save $106.52
$266.30
$266.30 - $266.30
$266.30
$159.78
$159.78 - $159.78
$159.78
Coilhose Pneumatics - Filters, Regulators & Lubricators - 27 Modular Series - Coalescing Filters
Specifications for Variant SKU: 27C3-S Coilhose
Material(s): Polycarbonate, Aluminum, Borosilicate Fibers & Felt
Overview:
  • Filters in the 27 Modular Series are engineered to provide exceptional design and installation flexibility. The 1/2" bodies offer higher flow rates and can be assembled together using traditional pipe nipples or clamped together using Modular Clamp kits. Optional mounting kits and a distribution block increase the flexibility of the series
Features:
  • Removes 99.97% of solids and fluids down to .3 microns.
  • Bowl guard supplied standard.
  • 8.5 oz bowl capacity.
  • Easy hands only filter element replacement.
  • Automatic drain and metal bowl options.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Maximum Supply Pressure: Plastic Bowl: 150 PSI
Metal Bowl: 250 PSI		 Maximum Operating Temp: Plastic Bowl: 120° F
Metal Bowl: 250° F
Materials: Plastic Bowl: Polycarbonate
Metal Bowl: Zinc Die Cast
Body: Zinc Die Cast		 Height: 7-1/2"
Maximum Diameter: 2-3/4" Bowl Capacity: 8.5 oz

SCFM at 1.5 PSID Pressure Drop
Supply Pressure SCFM
10 PSI 6.5 SCFM
20 PSI 9.1 SCFM
30 PSI 11.7 SCFM
40 PSI 14.3 SCFM
50 PSI 16.9 SCFM
60 PSI 19.5 SCFM
80 PSI 22.2 SCFM
100 PSI 24.8 SCFM
120 PSI 27.4 SCFM
140 PSI 30.0 SCFM
Note: All values are approximate.

Model Pipe Size Drain Material Max Pressure Micron Level
27C3 3/8" Manual Polycarbonate 150 PSI 0.3 Micron Element
27C3-D 3/8" Automatic Polycarbonate 150 PSI 0.3 Micron Element
27C3-DM 3/8" Automatic Metal Bowl 250 PSI 0.3 Micron Element
27C3-M 3/8" Manual Metal Bowl 250 PSI 0.3 Micron Element
27C3-S 3/8" Manual Metal w/ Sight glass 250 PSI 0.3 Micron Element

27C4 1/2" Manual Polycarbonate 150 PSI 0.3 Micron Element
27C4-D 1/2" Automatic Polycarbonate 150 PSI 0.3 Micron Element
27C4-DM 1/2" Automatic Metal Bowl 250 PSI 0.3 Micron Element
27C4-DS 1/2" Automatic Metal w/ Sight glass 250 PSI 0.3 Micron Element
27C4-M 1/2" Manual Metal Bowl 250 PSI 0.3 Micron Element
27C4-S 1/2" Manual Metal w/ Sight glass 250 PSI 0.3 Micron Element

27C6 3/4" Manual Polycarbonate 150 PSI 0.3 Micron Element
27C6-D 3/4" Automatic Polycarbonate 150 PSI 0.3 Micron Element
27C6-DM 3/4" Automatic Metal Bowl 250 PSI 0.3 Micron Element
27C6-DS 3/4" Automatic Metal w/ Sight glass 250 PSI 0.3 Micron Element
27C6-M 3/4" Manual Metal Bowl 250 PSI 0.3 Micron Element
27C6-S 3/4" Manual Metal w/ Sight glass 250 PSI 0.3 Micron Element
