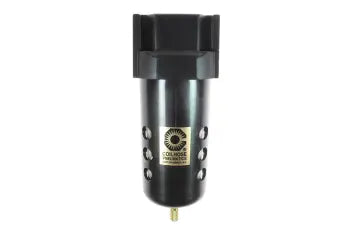

27F3-DX by Coilhose | 27 Modular Series Filter | Auto Drain | 5 Micron Element | 3/8" Pipe Size | Die Cast Aluminum

27F3-DX by Coilhose | 27 Modular Series Filter | Auto Drain | 5 Micron Element | 3/8" Pipe Size | Die Cast Aluminum

Save $80.19 Save $80.19
$200.48
$200.48 - $200.48
$200.48
$120.29
$120.29 - $120.29
$120.29
Coilhose Pneumatics - Filters, Regulators & Lubricators - 27 Modular Series - Filters
Specifications for Variant SKU: 27F3-DX Coilhose
Material(s): Aluminum, Polypropylene, Zinc
Overview:
  • Filters in the 27 Modular Series are engineered to provide exceptional design and installation flexibility. The 1/2" bodies offer higher flow rates and can be assembled together using traditional pipe nipples or clamped together using Modular Clamp kits. Optional mounting kits and a distribution block increase the flexibility of the series
Features:
  • 3/8", 1/2" and 3/4" port sizes.
  • 40 or 5 micron filter elements.
  • 8.5 oz bowl capacity.
  • Bowl guard supplied as standard.
  • Metal bowl available with or without sight glass.
  • Automatic drain option.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Maximum Supply Pressure: Plastic Bowl: 150 PSI
Metal Bowl: 250 PSI		 Maximum Operating Temp: Plastic Bowl: 120° F
Metal Bowl: 250° F
Filter Element: Standard: 40 Micron
Optional: 5 Micron		 Materials: Plastic Bowl: Polycarbonate
Metal Bowl: Zinc Die Cast
Body: Zinc Die Cast
Filter Element: Sintered Bronze
Height: 7-1/2" Maximum Diameter: 2-3/4"
Bowl Capacity: 8.5 oz

Supply Pressure Pressure Drop
1 2 3 4 5
3/8" at 25 PSI 29 SCFM 43 SCFM 46 SCFM 50 SCFM 52 SCFM
1/2" at 25 PSI 30 SCFM 45 SCFM 59 SCFM 63 SCFM 65 SCFM
3/8" at 100 PSI 44 SCFM 60 SCFM 75 SCFM 90 SCFM 110 SCFM
1/2" at 100 PSI 58 SCFM 76 SCFM 97 SCFM 117 SCFM 127 SCFM
Note: All values are approximate.

Model Pipe Size Drain Material Max Pressure Micron Level
27F3-SX 3/8" Manual Metal w/ Sight glass 250 PSI 5 Micron Element
27F3-MX 3/8" Manual Metal Bowl 250 PSI 40 Micron Element
27F3-DX 3/8" Automatic Polycarbonate 150 PSI 5 Micron Element
27F3-DMX 3/8" Automatic Metal Bowl 250 PSI 5 Micron Element
27F3-S 3/8" Manual Metal w/ Sight glass 250 PSI 40 Micron Element
27F3-M 3/8" Manual Metal Bowl 250 PSI 40 Micron Element
27F3-DM 3/8" Automatic Metal Bowl 250 PSI 40 Micron Element
27F3-D 3/8" Automatic Polycarbonate 150 PSI 40 Micron Element
27F3 3/8" Manual Polycarbonate 150 PSI 40 Micron Element
27F3-X 3/8" Manual Polycarbonate 150 PSI 5 Micron Element

27F4 1/2" Manual Polycarbonate 150 PSI 40 Micron Element
27F4-SX 1/2" Manual Metal w/ Sight glass 250 PSI 5 Micron Element
27F4-MX 1/2" Manual Metal Bowl 250 PSI 5 Micron Element
27F4-DX 1/2" Automatic Polycarbonate 150 PSI 5 Micron Element
27F4-DSX 1/2" Automatic Metal w/ Sight glass 250 PSI 5 Micron Element
27F4-DMX 1/2" Automatic Metal Bowl 250 PSI 5 Micron Element
27F4-S 1/2" Manual Metal w/ Sight glass 250 PSI 40 Micron Element
27F4-M 1/2" Manual Metal Bowl 250 PSI 40 Micron Element
27F4-DM 1/2" Automatic Metal Bowl 250 PSI 40 Micron Element
27F4-D 1/2" Automatic Polycarbonate 150 PSI 40 Micron Element
27F4-X 1/2" Manual Polycarbonate 150 PSI 5 Micron Element

27F6 3/4" Manual Polycarbonate 150 PSI 40 Micron Element
27F6-SX 3/4" Manual Metal w/ Sight glass 250 PSI 5 Micron Element
27F6-MX 3/4" Manual Metal Bowl 250 PSI 5 Micron Element
27F6-DX 3/4" Automatic Polycarbonate 150 PSI 5 Micron Element
27F6-DMX 3/4" Automatic Metal Bowl 250 PSI 5 Micron Element
27F6-DSX 3/4" Automatic Metal w/ Sight glass 250 PSI 5 Micron Element
27F6-S 3/4" Manual Metal w/ Sight glass 250 PSI 40 Micron Element
27F6-M 3/4" Manual Metal Bowl 250 PSI 40 Micron Element
27F6-DM 3/4" Automatic Metal Bowl 250 PSI 40 Micron Element
27F6-D 3/4" Automatic Polycarbonate 150 PSI 40 Micron Element
27F6-X 3/4" Manual Polycarbonate 150 PSI 5 Micron Element
