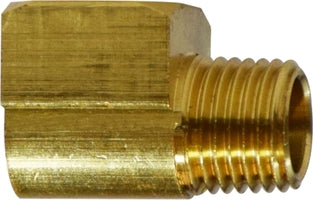

28156S (28-156S) Midland Short 90° Street Elbow - 1/8" Female NPTF x 1/8" Male NPTF - Brass

28156S by Midland | Short | 1/8" Female NPTF x 1/8" Male NPTF | 90° Street Elbow | Brass

Save $0.13 Save $0.13
$1.14
$1.14 - $1.14
$1.14
$1.01
$1.01 - $1.01
$1.01

Midland Industries
Brass Fitting - Pipe Thread - 90° Street Elbow

Inventory @ Manufacturers Warehouse: 17164 Units
Specifications for Variant SKU: 28156S Midland
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Female NPTF, 1/8in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: SAE# 130239 Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
116 2202P 304 115 202 3400 116A
Part Number NPTF Thread Size A B C Approx. Weight
(Lbs.)
28161 1/16" 0.69" 0.60" 0.47" 0.04
28156
(28-156)		 1/8" 0.48" 0.66" 0.56" 0.05
28156S
(28-156S)		 1/8" Short 0.34" 0.57" 0.50" 0.03
28157
(28-157)		 1/4" 0.72" 0.91" 0.735" 0.09
28157S
(28-157S)		 1/4" Short 0.45" 0.78" 0.68" 0.07
28158
(28-158)		 3/8" 0.78" 0.97" 0.81" 0.16
28159
(28-159)		 1/2" 1.03" 1.25" 1.00" 0.33
28160
(28-160)		 3/4" 1.12" 1.38" 1.25" 0.52
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
